Basic Info.
Crushing Capacity
100-999t/h
Color
Customer Requirement
Spare Parts Supply
Anytime
Processed Materials
200 Kinds Materials(<300 MPa)
Transport Package
Standard Container
Specification
Refer to parameters
Production Capacity
40000 Sets/Year
Packaging & Delivery
Package Size
2100.00cm * 1200.00cm * 1700.00cm
Package Gross Weight
3000.000kg
Product Description
Product Introduction

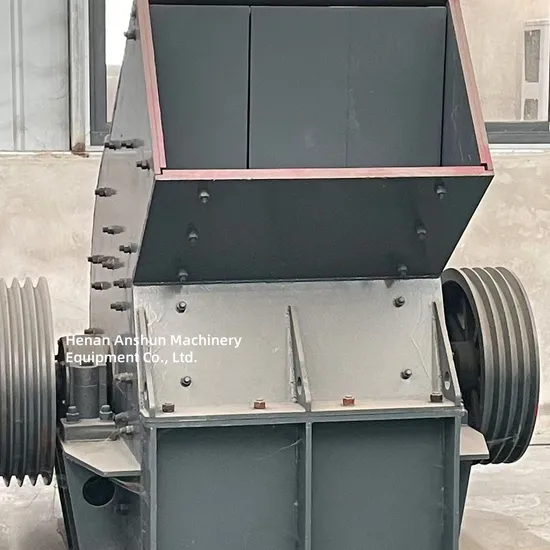

Small hammer crusher is one of the main equipment for crushing limestone, coal or other brittle materials with medium hardness or below in metallurgy, building materials, chemical industry, hydropower and other industrial sectors. The material is crushed by the collision surface of the high-speed rotating hammer and the material.
Performance characteristics:1. This heavy hammer crusher has the characteristics of high output, low energy consumption, simple structure and convenient maintenance.
2. Compared with the jaw crusher of the same output, it can reduce equipment investment, with low investment and quick results.
3. The machine adopts a grate-free design, which eliminates the problem of blockage and adhesion for wet materials and crushing raw materials with high soil content.
4. The machine adopts an alloy composite hammer head, which reduces the consumption of wear parts and reduces production costs by about 35%.
Technical Parameters
Model | Input Size (mm) | Discharge Size (mm) | Capacity (t/h) | Power (kw) |
PC 200X300 | 100 | ≤10 | 2-4 | 5.5 |
PC 300X400 | 100 | ≤10 | 5-7 | 11 |
PC 315x520 | 100 | ≤15 | 7-10 | 15 |
PC 400X600 | 120 | ≤15 | 10-15 | 22 |
PC 600X600 | 150 | ≤15 | 15-28 | 30 |
PC 600X800 | 150 | ≤15 | 18-32 | 55 |
PC 800X800 | 200 | ≤15 | 22-35 | 75 |
PC 1000X800 | 200 | ≤15 | 33-55 | 90 |
PC 1000X1000 | 300 | ≤19 | 45-70 | 110 |
Applicable materials
medium and fine crushing of hard and medium hard rocks such as quartz, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, bluestone, etc.
Company Profile
Henan Anshun Machinery Equipment Co., Ltd. is a modern enterprise engaged in the research and development, production, sales and service of equipment in the fields of mining crushing, building crushing, tower sand making, etc. It is the first unit to pass the ISO9001 quality certification system, the EU CE certification unit, and an enterprise with the right to import and export. Over the years, the company's products have been sold well throughout the country and exported to Vietnam, North Korea, Central Africa and the Middle East countries and regions. The company's after-sales service team is spread all over the world. The complete after-sales service management system has been recognized and praised by the industry, and is well-known at home and abroad, becoming a shining pearl in my country's mining machinery manufacturing industry.Packaging & Shipping
Certifications
FAQ
Support:We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.After-sales service support :After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.Technological support :ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.
>>
