Basic Info.
Automatic Grade
Automatic
Transport Package
Standard Export Wooden Case Package
Production Capacity
1000 Sets/Year
Product Description
-Application:

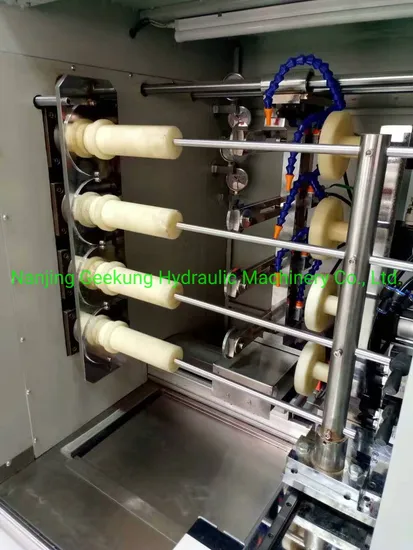

CNC Gasket Cutting Machine is used for precise cutting of kinds of rubber&silicone gasket/ washer/ring-shaped tubular products, and other rubber&plastic&nylon gaskets.
-Features:
1. When the cutting finishes, materials take off automatically, and through the collection boxes to gather the cut products.
2.Our CNC Gasket Cutting Machine adopts vacuum pump, realizing powerful vacuum absorption of the pipe/tube, so ensuring the finished cut product more precise.
3. Automatic air blowing function makes loading and unloading more convenient, greatly improving the working efficiency.
4. The CNC Gasket Cutting Machine adopts PLC+HMI touch screen control, cutting parameters are set up from the HMI,cutting recipes are aumatically stored,easy to call, making the operation very easy.
5. All electrical components, pneumatic components are imported from abroad or domestic famous brand products, to ensure long-term use, reliability and stability of the new machine.
6. Use servo drive system to control the blades, compared with pneumatic control, servo control is more stable working and higher cutting precision.
Main technical data:
Model | JCM200-1 | JCM200-2 | JCM200-4 |
Spindles (mandrels) | 1 | 2 | 4 |
Cutting efficiency | ≥60 times /min | ≥ 120 times /min | ≥200 times /min |
Working rotation speed | 0─3000rpm | 0─3000rpm | 0─3000rpm |
Cut precision | ≤±0.05 mm | ≤±0.05 mm | ≤±0.05 mm |
Cut size | Rubber diameter:ф10-150mm (2)Cut length (standard):<=140mm; Lengthened type<=350 (3)Rubber wall thickness:<=25mm | (1)Rubber diameter: ф10─120mm Cut length (standard):<=140mm; Lengthened type<=280 Rubber wall thickness: <=25mm | (1)Rubber diameter: ф10─120mm Cut length (standard):<=140mm; Lengthened type<=280 Rubber wall thickness: <=25mm |
Specification of blade | blade:ф60*ф25.4x0.3
| blade:ф60*ф25.4x0.3 | blade:ф60*ф25.4x0.3
|
Compressed air | 20L/min | 30L/min | 30L/min |
Air pressure | 0.5Mpa─0.8Mpa | 0.5Mpa─0.8Mpa | 0.5Mpa─0.8Mpa |
Vacuum degree | ≤-0.035Mpa | ≤-0.035Mpa | |
Power source | AC220V±5% | AC220V±5% | AC220V±5% |
>>
