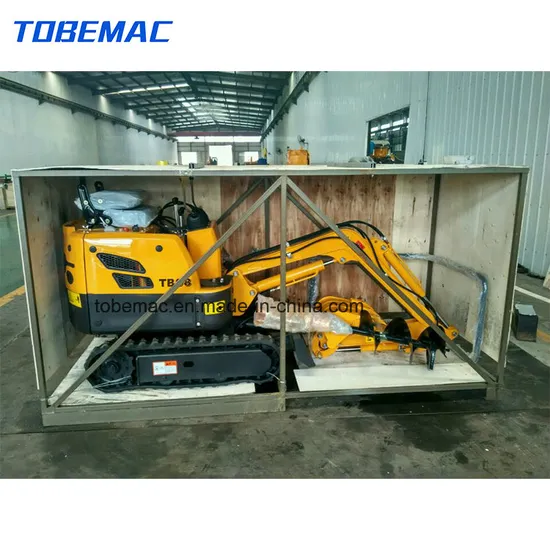

2.2ton Mini Crawler Excavator by Manufacturer Since 1991

Product Description

1.Why choose us?TOBEMAC----CHINA Leading Construction Machinery Manufacturer We are manufacturer of Concrete Mixers Since 1991. We are certified by SGS;BV;SONCAP;PVOC;CE; ISO 9001:2015 We have a Professional Construction Machinery workshop which covers an area of 10000 sqm and its daily output for CONCRETE MIXER is 50 sets , so we can assure you the punctual delivery. Our main products include all kinds of Diesel Concrete Mixer,Electric Concrete Mixer,Concrete Mixer Truck, Hoisting Machinery, Road Machinery,Compactor Machinery,Block Machinery , and etc. Our company is near the NINGBO port , you are very welcome to come to our company.
2.Products Specification:

Model

TOBEMAC Brand Crawler Excavator with High Quality

Specifications Operating Weight (kg): 2200 Bucket Capacity(m³) 0.08 Bucket Width(mm) 490 Boom Length(mm) 2000 Arm Length(mm) 1000 Performance Swing speed(rpm) 10 Travel Speed(Km/h) 1.5 Grade Ability(%) 25° Ground Pressure(Kpa) 34 Bucket digging force (kN): 18.2 Arm digging force(kN) 10.5 Engine Brand/ Model CHANGCHAI / ZN390Q Rated Power (Kw/rpm): 25/2600 Max.Torque (N.m/rpm): 102.8/1820 Displacement (L): 1.813 Cylinders 3 bore and stroke (mm×mm): 90 x 95 Cooling type Water Hydraulic system Main pump Triple Rated Pressure (Mpa): 25/31.5 Main pump Max.Flow (L/min): 55 Swing hydraulic motor : 2.5K-245 (Mpa): | Travel Hydraulic Circuit(Mpa): 18 Swing hydraulic circuit (Mpa): 18 (Mpa): 0.4 Pilot pressure oil line(MPa) 2.5(L)-3.5(H) (L/min): | Boom cylinder number*bore*rod*stroke 1*70*40*415 (mm): Arm cylinder number*bore*rod*stroke 1*70*40*375 (mm): Bucket cylinder number*bore*rod*stroke 1*60*35*400 (mm): Auxiliary Piping for Hammer : yes Oil Capacity Fuel Tank (L): 40 Hydraulic Oil tank (L): 60 Engine Oil(L): 5.5 fuel consumption: 2.5-3.0L/h Overall Dimensions Overall Length (mm): 4082 Overall Width (mm): 1200 Overall Height (mm): 2128 Superstructure width (mm): 1200 Counterweight ground clerance (mm): 458 Track grounding length (mm): 1250 Total track length (mm): 1610 Track shoe width(mm) 230 Total track length(mm) 1250 Track gauge(mm): 950 Min.ground clearance (mm): 190 Min.Front Swing radius(mm): 1115 Tail Swing radius (mm): 1200 Dozer blade with (mm): 1200 Operation Range Max.Digging radius(mm): 4023 Max.Digging radius(ground level) (mm): 4095 Max.Digging Depth (mm): 2150 Max.Digging Height(mm): 3714 Max.Dumping Height(mm): 2488 Boom offset (mm): 490|640 Boom swing angle L/R (°): 70|50 dozer blade size (mm): 1200*210 dozer blade lift/digging (mm): 174|218

3.Main Features
1. Low noise, low fuel consumption and low emission.
2. Adopted world class Kawasaki hydraulic system, high efficiency and reliability.
3. Hydraulic control system is used with multi-power modes to adapt to different operations.
4. Superior excavation performance, design of enhanced structural parts, uses high tensile steel plate
5. Power system and hydraulic system cooperate well to improve 10% dig power.
6. Optional extension track to improve stability.
7. Boom deflexion meet narrow work condition.
8. Optional hydraulic quick hitch, hammer, ripper and drill.
4.Production Flow
5.Our service
1.Installation, debugging, operators trainning;
2.Maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete mixers;
D. If needed, we will send engineers to your site to solve your problems.
3.Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
4.Spare parts supply;
6.Contact with us!
Mr. LEO ZHAO

----------------------------------------------
HANGZHOU TOB ENGINEERING MACHINERY CO.,LTD.
ADD: HUTANG INDUSTRIAL PARK ,DACIYAN TOWN,JIANDE CITY,ZHEJIANG PROVINCE,CHINA

---
