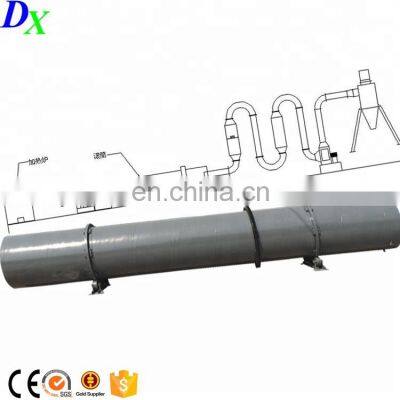

Sawdust tube rotary dryer price
Product Description
Introduction of Tube rotary dryer:
Tube rotary dryer, also called pipeline type drying machinery, adopting twice circulate heating system, is our newly developed advanced drying equipment, and show the features of automatic feeding, high hot airflow speed, fully mixing of airflow and materials, big drying strength, lower dust and bigger drying capacity. Moisture in the raw materials of less than 40% can be drying one time to meet the requirement for coal bar production, which greatly reduced the labor intensity compared with commonly used drier.
Available materials of Tube rotary dryer:
Tube rotary dryer is suitable for dry biomass materials, like: sawdust, rice husk, grass, straw and stalks, peanut shell powder, coconut shell and so one.
But, you should make sure the size of material is less than 5mm. That’s to say, if your material is big, crush them first.
How does Tube rotary dryer works:
In this system, wet material is put into the hopper. At the same time fuel furnace produces large volume of hot air, which is driven into steel pipes, mixed with wet sawdust and attracted through curving pipes and drying chamber by the power of fan blower. Fast moving hot air sustains and is mixed with raw material sent by spiral feeder in the suspending state through the steel pipe, and moisture evaporates asthe material traverses along the steel pipe and is rendered dry at the discharge end.
Data of Tube rotary dryer:

Model (mm)	Obliquity(%)	Rotation speed (r/min)	Feeding temperature (degree)	Power (kw)	Capacity(t/h)	Weight (t)
600x6000	3-5	3-8	<=700	3	0.5-1.5	2.9
800x8000	3-5	3-8	<=700	4	0.8-2.0	3.5
800x10000	3-5	3-8	<=700	4	0.8-2.5	4.5
1000x10000	3-5	3-8	<=700	5.5	1.0-3.5	5.6
1200x10000	3-5	3-8	<=700	7.5	1.8-5	14.5
1200x12000	3-5	3-8	<=700	11	2-6	14.8
1500x12000	3-5	2-6	<=800	15	3.5-9	17.8
1800x12000	3-5	2-6	<=800	18	5-12	25
2200x12000	3-5	1.5-6	<=800	18.5	6-15	33
2200x18000	3-5	1.5-6	<=800	22	10-18	53.8
2200x20000	3-5	1.5-6	<=800	30	12-20	56
2400x20000	3-5	1.5-5	<=800	37	18-30	60
3000x20000	3-5	1.5-5	<=800	55	25-35	78
3000x25000	3-5	1.5-5	<=800	75	32-40	104.9

Specification of Tube rotary dryer:
1. It is suitable for drying materials of moisture 20-70%.
2. It is suitable for drying materials like sawdust, rice hull, milling wheat straw, corn stalks and so on.
3. It is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone. Wet materials are input into the hopper.
4. The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock.
5. It reduces the moisture to 8-12%.
6. Clients can change the angle of dryer base on the production field.
7. It is only to control the moisture of raw material at a reasonable range that can make good result of biomass briquettes. Or the briquettes will be broken because of too loose or too dry.
The whole production line of Tube rotary dryer:
Packaging & Shipping
Package and delivery of Tube rotary dryer:
Regarding delivery, we will choose the most suitable way to ship your machine. Send it directly by truck, or load it into shipping container directly.
Company Information
Gongyi Dongxing Material Trade Co., Ltd is located in Gongyi city and is specialized in manufacturing Mechanical equipment, including Charcoal machinery, Wood pellet machinery, Nail making machinery,etc. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially Europe, South America, Middle East... Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
Our Services
FAQ
--- What kinds of materials can we use?
You can use almost all the agricultural wastes, like: sawdust, rice husk, stalk, straw, corn,etc.
--- What is the max feeding moisture?
We advise you use the materials 50%. Then it canbe dried to 8% one time. If the mositure is higher, the capacity is lower.
--- Can you provide us drawing paper to install machine?
Yes, of course. We can send you drawing how to install machine, how to build heating furnace.
