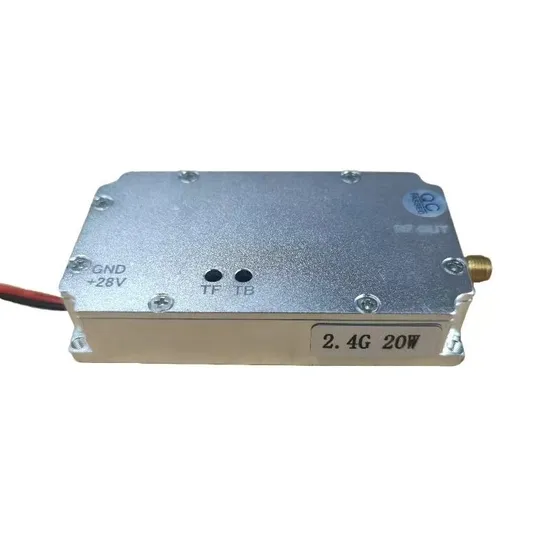

Portable 2.4G 20W Anti Drone module System RF Power Amplifier Module High Efficiency Wireless &RF Modules with Anti Uav Accessories jammer module lora drone
| Indicators | Parameter |
| Working frequency | 2400-2500MHz |
| Gain | ≥43dBm |
| Max output | ≥43dBm |
| Output CW saturation power | ≥20W |
| Including inside gain flatness | ≤1±0.5dBm |
| Working current | ≤2.5A |
| Output port standing wave | ≤1.5 |
| Clutter suppression | ≥65dBm |
| Harmonic suppression | ≥11dBm |
| Rf output interface | SMA |
| 27V power supply port | VA3.96-2A/2Y |
| Sweep frequency | 60-250KHz |
| VCC Power supply reference | 24V-27V |
| Max Voltage | +30V |
| Weight | 0.1kg |
| Installation dimensions | 78*41mm |
| Overall dimensions | 82*45*18mm |
| Operating temperature | -25 ~ +85 |
| Installation | Installing radiator for testing of power amplifier |
| Standing wave protection | Turn off the power amplifier to protect standing wave when don't connected antenna |
| Temperature protection | Over 80 automatically turn off power amplifier |
| Communication | The power amplifier has RS485 communication function |
| Data monitoring | Temperature,Standing wave,Power,Current |
| Rf power adjustment | Power attenuates by RS485 |
