Clr-3500 Big Capacity Rotary Desiccant Wheel Dehumidifier Industrial Air Dryer for Laboratory

Product Description

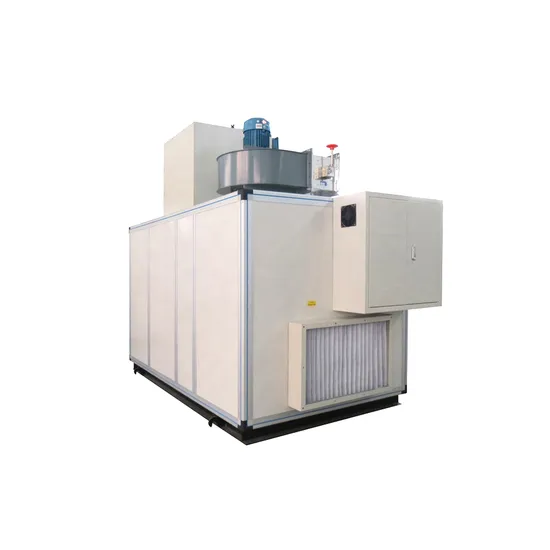

Conloon Desiccant Rotary Dehumidifier
CLR-3500
Character:
High moisture removal, suitable for low temperature and RH process.
Aluminum frame.
Inner insulation box, energy-saving. Rotary Desiccant Dehumidifier
Efficient centrifugal fans.
Thermal regeneration by electric heating pipe and stainless steel fins, thermal regeneration by vapor heating exchanger and copper tube aluminum fins.
Safe and convenient electric control.
Switch between manual and automatic control. Rotary Desiccant Dehumidifier

Small Desiccant Rotor Dehumidifiers
Main Parameters/Model		CLR-120	CLR-200	CLR-300	CLR-600	CLR-1000	CLR-1500	CLR-2000
Proecess Air	Rated Airflow (m³/h)	120	200	300	600	1000	1500	2000
	Process ESP(Pa)	/	/	/	/	200	200	200
Reactivation Air	Rated Airflow (m³/h)	40	67	100	200	333	500	667
	Process ESP(Pa)	/	/	/	/	200	200	200
Reactivation Model	Electric,Max Power(kw)	1.5	1.5	3	7.2	12	14.4	24
	Steam Pressure (Mpa)	/	/	/	/	0.35-0.45	0.35-0.45	0.35-0.45
	Steam Consumption (kg/h)	/	/	/	/	20	30	40
Dehumidifying Capacity (20ºC,70%RH)		0.6	1.5	1.6	4.5	7.2	11.4	14.5
Drive Motor	Motor Power(kw)	0.015	0.015	0.025	0.04	0.04	0.06	0.06
Installed Power(kw)	Electric Heating Model	1.685	1.5	3.325	7.2	12.96	16.31	25.51
	Steam Heating Model	/	/	/	/	0.96	1.91	1.51
Overall Dimensions (mm)	Length	530	450	530	550	600	710	1500
	Width	340	450	530	550	600	710	900
	Height	750	850	1280	1350	1380	1650	1660
Weight(kg)		35	50	80	95	200	300	350
Other Dates	Air Filter Level	/	/	/	/	G4	G4	G4
	Applied Temperature(ºC)	-30~+40

Note:
1. The desiccant dehumidifier will carry latent heat temperature rise to the dry room, please add the cooling capacity of the A/C to overcome the heat. Rotary Desiccant Dehumidifier
2. We provide the whole dehumidifier, users purchase and install the air pipe system themselves.
For your convenience
we will enclosed the Installation Guidance of Desiccant Dehumidifier
We are one of the top humidifiers and dehumidifiers manufactures in mainland China.

We have more than 100 employees,among them there are 21 professional technicians who are with
more than 10 years work experiences in air conditioning and cooling industry.

We have the whole production line,producing equipment and testing equipment,
we can produce 500,000pcs dehumidifiers and humidifiers every year.

We are aiming to develop more than 5 kinds of new style dehumidifiers per year
from this year.

Our main market of dehumidifiers are USA, Canada, Germany, Switzerland,
Russia,Spain,Turkey,Malaysia etc.

Our main market of humidifiers are Thailand, Malaysia, Indonesia, Russia,
Uzbekistan,Turkey,Spain,USA,Israel etc.

Except the advanced precise testing equipment to ensure the quality of our products , we give one
year warranty to all of our products.If you have any quality problem, we will change the machine or
spare parts for you for free.
Our business principle : trying our best to serve you with high quality products and good services .

Your satisfaction is driving force of our development.

We provide OEM and ODM service. We welcome you to be our long term business partner.
