Building Ceiling Metal Mesh Expanding Machine High Speed Expanded Metal Mesh Machine Production Line Expanded Mesh Machine with Factory

Product Description

Product Description

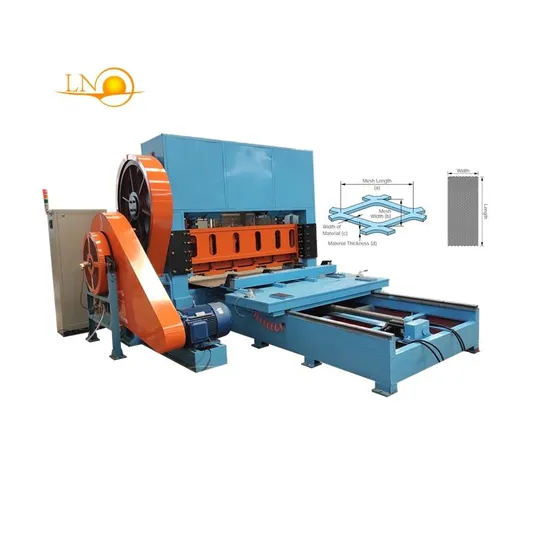

High speed expanded metal mesh machine
Product Description
This machine adopts mature technologies of the past as well as new technologie,such as full-automatic lubricating, NC stepping motor feeding, etc.
It has good effect, control ability,stability and safety has been greatly increased. It has reasonable structure, elegant appearance. energy saving.
It is suitable for the material such as low carbon steel sheet, aluminium sheet, stainless steel sheet, aluminium magnesium alloysheet, copper sheet, Nickel sheet.
Parameter of the machines

Type	JQ25-6.3	JQ25-16	JQ25-25	JQ25-40	JQ25-63	JQ25-100
Depth(mm)	1.0	1.0	1.5	2.5	4	6
Width(mm)	500	1000	1250	1500	2000	2000
Stroke per min(times/min)	300	270	230	80	67	60
Distance(mm)	0-1.5	0-10	0-10	0-10	0-20	0-20
Lenght of Mesh(mm)	max.12.5	max.25	max.30	max.80	max.200	max.200
Motor(KW)	2.2	3	4	11	11	15
Weight(T)	0.95	2	3	6	10	12
Measurement(mm)	1090*710 *1450	1800*1320 *1550	1940*1600 *2010	2870*1990 *2140	2400x3500 x2300	3600*2500 *3000

Our Services
Detailed Photos
Packaging & Shipping
Packaging & Shipping
1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box.
2. The main machine will be fixed in the container by steel wire rope to make it stable.
3. It needs one 20'GP/40'GP/40'OT container for shipment
4. 30 days
Machine

Company Profile
Company Information
Hebei Sade Machine Manufacturing Co.,Ltd is located in Anping County-- the well known hometown of wire mesh, Heibei Province, China.
We have been engaged in designing, producing and exporting different kinds of wire mesh machine since established in 2000,covers a total area of 67,000 square meters. Up to now , we have more than 100 sets of processing machinery and over 300 employees, of which more than 70 are engineers and technicians.
We have passed ISO9001 Quality Management System Attestation, CE Certification and SGS through consistent efforts of all staff members.
FAQ
FAQ
Contact
Contact person: Cathy Shi
Hebei Laien Wire Mesh Machine Manufacturing Co., Ltd.
Address: Anping county, Hengshui City, Hebei Province



Q: what's the delivery time of gabion mesh machine ?
A: 30 days after we received the deposit.
Q: Could we install the machine by ourselves?
A: yes, if u can. if u have any problem, u could ask us.`
Q: Could u install the machine in our factory?
A: Yes, If u need, we will arrange our engineer install the machine in our factory
Q: Could u make different voltage of this machine ?
A: we could make one type of voltage which is suited to our country
Q: Are you a manufacturer in China?
A: Yes,we are a manufacturer for producing wire mesh machine with over 20 years experience.

1 warranty:One year, and we will provide the technical support for the whole life.
2 Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD100/person/day for salary.
3 Need one or two technician
4. Training time: one week (contains the time of installation and adjustment)

Finished Products

Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships

---
