0.4-5m Detection Range Truck Parking Sensor/ reverse Radar System

Product Details

Product Description

Product Description
Product description
The truck video parking system designed for various heavy machinery, trucks/vans/lorries to help driver checkout blind zone when reversing;
the monitor display video according to back camera to help driver see the back situation of the vehicle;
The ultrasonic sensor can detect the obstacle distance behind the vehicle, show precise distance on the monitor and come with warning signal. So that help driver judge the behind object distance, position, area with alarm for safety parking. And this system with water resistant, anti-shock, anti-interference, long distance detection, etc.
Product accessories
We suggest you can check all the product parts and accessories when you get it, if there is any damages you can contact dealer.

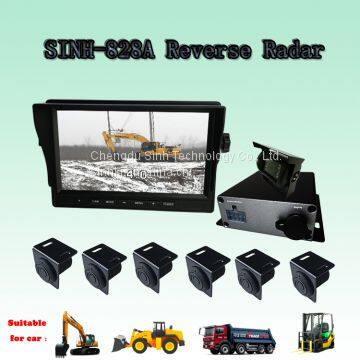

accessory	quantity	Product model	remark
Radar host	1	SINH-828A
probe	4-6	32T
Video link	2		According to vehicle condition matching
camera	1
display screen	1
power line	1	1m
product manual	1	SINH parking sensor monitoring system
certificate	1

3. Technical parameters
Rated working voltage:DC24V；
Power consumption:＜20W
Detection range: 0.4~5.0m；
Display resolution:0.1m
Detection angle:single angle 70°± 15°；
Working temp.:-40°C ～+80°C
4. Product Functions
☆ LCD monitor display back vision, distance between obstacles & your car, help the diver for safety parking；
☆ In 5m distance, the monitor display object distance with buzzer alarm；
☆ Buzzer alarm:≤0.4m buzzer non-stop ；
☆ Each sensor corresponds to a point, clear obstacle position, help driver better judgment&safety parking;
☆ The parking system auto start when you backup your car;
☆ Backup camera with Night vision, waterproof and can provide clear image even in total darkness；
☆ Die cast metal housing camera with anti-interference, can work in most of the situations. A very reliable top seller suitable for cars, vans, buses, trucks, boats, heavy machinery.
Wiring Diagram:

---
