New Design High Efficiency Rubber Autoclave for Rubber Vulcanizing / Tire Retread Machines / Rubber Vulcanizing Autoclave

Product Description

Product Description

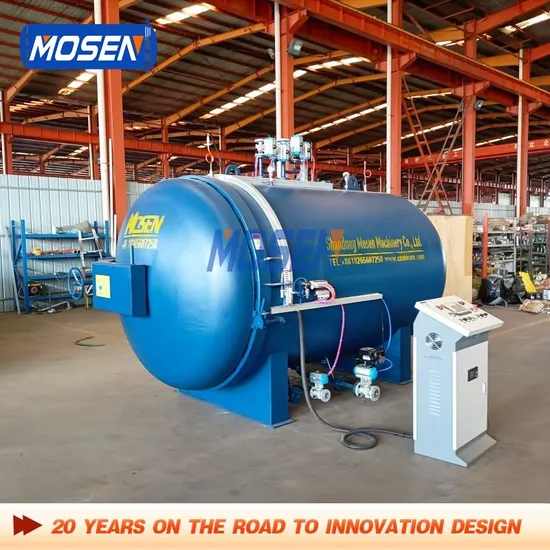

New Design High Efficiency Rubber Autoclave
The vulcanization rubber autoclave is the earliest vulcanization equipment used in rubber products. The heating methods of the vulcanization rubber autoclave are generally divided into steam heating rubber autoclave and electric heating rubber autoclave. The heating method of the direct steam vulcanization rubber autoclave is direct steam heating. We will set up a steam inlet at the bottom of the rubber autoclave. The steam is heated by Entering from the bottom of the rubber autoclave, the air inlet is automatically controlled by a pneumatic angle seat valve. The steam diffusion tubes are arranged vertically at the bottom of the rubber autoclave. The small steam holes in the diffusion tubes are densely arranged according to certain rules and inclination angles to ensure that the temperature of the steam enters the rubber autoclave and spreads evenly around, preventing uneven steam diffusion and direct heating of the steam. The product heats unevenly. After setting the working program, the control system automatically performs air intake, exhaust, heating, insulation, vulcanization and other tasks. After vulcanization is completed, it automatically shuts down and emits an audible and visual alarm. The temperature and pressure in the vulcanization rubber autoclave are kept constant and uniform, which solves the problem of different product quality caused by uneven temperature and pressure of the products in the rubber autoclave.

Certifications
Company Profile
Shandong Mosen Machinery Co., Ltd. is a pressure vessel manufacturer under Mosen Industrial, which integrates scientific research, production and sales. The company is located in Zhucheng High-tech Industrial Park, Shandong Province, close to Qingdao seaport and airport, and the transportation is very convenient.
Our main products are:Steam heating vulcanization autoclave, electric heating vulcanization autoclave, hose vulcanization autoclave, rubber roller vulcanization autoclave, large commercial vulcanization autoclave, pipe lining rubber vulcanization autoclave, marine airbag vulcanization autoclave, pet toy vulcanization autoclave, tire retreading vulcanization autoclave, etc., according to customer requirements Customize various types of pressure vessel equipment.

Product Parameters
Rubber Autoclave Parameters

Model	Effective diameter (MM)	Effective Length (MM)	Capacity (m³)	Outside Measurement (MM)			Design Temperature	Design Pressure	Test Pressure
				L	W	H
DN0710	700	1000	0.38	2500	1700	2500	147ºC	3.5bar	4.4bar
DN0712	700	1200	0.46	2700	1700	2500	147ºC	3.5bar	4.4bar
DN0815	800	1500	0.75	3000	1800	2700	147ºC	3.5bar	4.4bar
DN0918	900	1800	1.1	3300	1900	2800	147ºC	3.5bar	4.4bar
DN1020	1000	2000	1.80	3400	2200	3000	147ºC	3.5bar	4.4bar
DN1220	1200	2000	2.26	3520	2300	3140	147ºC	3.5bar	4.4bar
DN1224	1200	2400	2.7	3850	2300	3140	147ºC	3.5bar	4.4bar
DN1236	1200	3600	4	5000	2300	3100	147ºC	3.5bar	4.4bar
DN1544	1500	4400	7.77	5800	2500	3900	147ºC	3.5bar	4.4bar

We have more than 10 years of design experience in this industry autoclave and can customize production equipment according to your requirements. If you have any questions or are interested in our rubber autoclave, please feel free to contact me and we will provide you with the best service within 24 hours. Welcome to visit our company at any time, and thank you for visiting our website!
Rubber Autoclave Application
Rubber Autoclave Customer Case

Packaging & Shipping
We will deliver the retort machine by LCL/20'FCL/40'FCL depending on your order.
Before delivery, our professional technician will do a trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.
When loading, our workers will fix the retorts tightly with wire rope so that the retorts can't move in the container.
New Design High Efficiency Rubber Autoclave For Rubber Vulcanizing / Tire Retread Machines / Rubber Vulcanizing Autoclave
FAQ
1. Installation and debugging
We provide a variety of installation and debugging methods for you to choose: installation and debugging graphic guidance, video installation and debugging guidance, door-to-door installation and debugging
2. Warranty period
All our products are guaranteed for one year
All our products will be delivered with a set of vulnerable parts
In case of any problem, we can provide video guidance and on-site maintenance and debugging
Lifetime service and quality cost-effective accessories
3. Certificates autoclave
Free certificate of origin in China
According to your requirements, we can provide CE and other related certificates autoclave
4. Inspection Service
All our products support the third-party on-site inspection service appointed by cutomer.
5. Other problems
Communicate with our customer service staff and answer for you at any time
6. Payment Terms
We accept multiple terms of payment, such as L/C, T/T, western Union, Money Gram, ****** Trade Assuranc

---
