Single Mode Bandpass Filter -1064nm - Csrayzer

Product Description

Introduction
CSRayzer's Single Mode Band Pass Filter(BFF) series product, is a micro optics device based on thin-film filter technology. It is used to block out unwanted noise signals in EDFAs and fiber laser systems. The components are characterized with high isolation, low insertion loss, excellent environmental stability and high power handling capability.
Specification

Parameters	Unit	Values
Center Wavelength	nm	1064
CWL	nm	±5(Customized)
@0.5dB Pass band	nm	2/5/10/15
@25dB Blocked band	nm	5/8/10/25
Max.Insertion Loss@ Pass band	dB	0.8
Min.Return Loss	dB	50
Handing Power	mW	300
Max. Tensile Load	N	5
Fiber Type	-	Hi1060
Working Temperature	ºC	-5 t o +70
Storage Temperature	ºC	-40 to +85

*IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
*Above specifications are for device without connector and may change without notice.
Ordering Information
BPF--1--2--3--4---5----6---7----8

1-Center Wavelength	2-Pass Band	3-Blocked Band	4-Package Dimension	5-Fiber Type	6-Fiber Length	7-Fiber Jacket	8-Connector
1064-1064nm	2-2nm	5-5nm	5.5x35	Hi1060-Hi1060	1-1M	0-Bare Fiber	FU-FC/PC
1550-1550nm	5-5nm	8-8nm	S-Specify	SMF28e-SMF28e	S-Specify	1-900μm Loose Tube	FA-FC/APC
2000-2000nm	8-8nm	10-10nm		S-Specify		2-2mm Cable	S-specify
S-Specify	S-Specify	S-Specify

Company Profile
FAQ
1. Are you the real factory?
Yes, we are the real factory with about 10 years history.

2. What packaging does the product use?
With CSRayzer brand name or Neutral packaging.

3. What is your main products?
SuperMini Optical Passive Components
Fiber Coupled Acousto-Optic Modulator (AOM)
Single Mode Optic Components
Polarization Maintaining Optical Components
Fiber GYRO Coil and coil winding machine
High-power optic components
Free Space Faraday Isolator and Faraday Rotator
Mini Hybrid packaged components
4. Product quality guarantee period?
12 month' Guarantee for Precision Equipment Machine.

5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?
Within 7 days for stock products; More than 2 weeks for customized products.
If you have any specific requirements, please do not hesitate!
Mentions!!!!

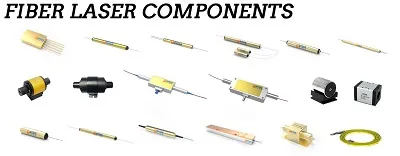

CSRayzer's product portfolio includes various kinds of:
SuperMini Optical Passive Components
Single Mode Optic Components
Polarization Maintaining Optical Components
Fiber GYRO Coil and coil winding machine
High power optic components
Free Space Faraday Isolator and Faraday Rotator
Mini Hybrid packaged components
Optical passive modules.
All products could be customized!
Applications are for Optic Fiber Laser, Fiber Sensor, Fiber LIDAR system and solutions.
All products are mass exported to North America, Europe, Middle east, and all over the world!
Best price, best quality, and best service, is our principle!
If you have any specific requirement, please do not hesitate!

---
