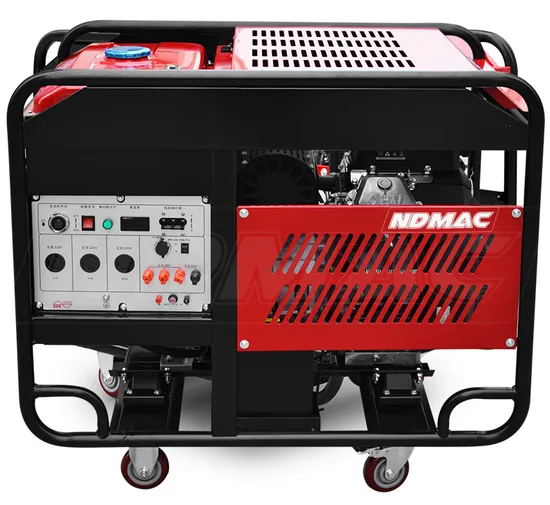

Ec16000 Gx630 Gx670 Gx690 V-Twin 8kw 10kw 12kVA 15kVA Honda Power Gasoline Generator

Product Description

EC-16000 GX630 GX670 GX690 V-TWIN 8KW 10KW 12KVA 15KVA HONDA Power Gasoline Generator
Product Parameters

Generator model	ND13000E	ND15000E	ND22000E	ND25000E	ND25000E-3
Excitation method	AVR	AVR	AVR
Rated Power 0utput(kw)	10	12	15	18	18
Max Power output(kw)	11	13.5	16	20	20
Voltage(V)	230	230	220/230	220/230	230/400
Phase	1	1	1	1	3
Power Factor(cosΦ)	1	1	1.0/0.8	1.0/0.8	1.0/0.8
Insulation class	F	F	F Class	F Class	F Class
Engine model.	R670	R740	R999	R999	R999
Bore*stroke(mm)	78x70	82x70	90x78.5	90x78.5	90x78.5
Displacement(cc)	670	740	999	999	999
fuel consumption (g/kwh)	374	374	374	374	374
Ignition method	Inductive discharge	Inductive discharge	Transistor contactless ignition
Engine type	V-twin,air cooled,4 stroke,ohv	V-twin,air cooled,4 stroke,ohv	V-twin,air cooled,4 stroke,ohv
Oil Capacity(L)	1.5	1.5	2.8	2.8	2.8
Start system	E-start	E-start	E-start	E-start	E-start
Fuel capacity(L)	35	35	35	35	35
Fuel type	>=90#	>=90#	>=92#		>=92#
Battery capacity	12V-36AH	12V-36AH	12V-36AH
Oil alert	yes	yes	yes	yes	yes
control panel	Digital Meter	Digital Meter	Digital Meter	Digital Meter
Noise level a 7m	75	75	75	75	75
Package size(mm)	1000x680x890	1000x680x890	1010x670x810	1010x670x810
Weight(Kg)	170	170	200	210	210

Detailed PhotosPhase for Optional:
Single Phase For Home Use
Three Phase for Industrial Use
Dual use of Three phase & Single Phase
with ATS (Automatic Transfer System or without is optional
Original HondaEngine,RatoEngine or LoncinEngine is optional
Product Applications
About UsTaizhou Nongda Machinery Co.,Ltd is located in Taizhou City, Zhejiang Province,China,next to Ningbo Port & Shanghai port,it is very convenient for shipment.
Nongda is a Professional Manufacturer of Generator, Water Pump, Engine, Power Tiller,
Power Sprayer, Pressure Washer, Brush Cutter and some other Power & Agricultural Machinery.
We Own Self brands NONGDA ,KINGMAXPOWER,also offer the products Powered by Honda,
Yamaha,Briggs & Stratton .
Nongda aimed to be the respectable enterprise who can offer Excellent Quality and VIP service
to every Clients all over the world, Whenever you come to Nongda, we will make you feel at home
Tips for New buyerFew useful tips while you considering us as new supplier:
1.Quality is depend on your market request to offer, we have self-made normal quality and high quality engine,original Honda engine, Kama Engine, B&S engine for your optional.
2.Price based on FOB SHANGHAI/NINGBO, requseting for CNF&CIF price is welcome.
3.MOQ 10PCS,50PCS.100PCS for different products.
4.Delivery time 15-40 days depending on the actual product requirements.
5.Payment term 30% deposit, 70% before shipping. 100% deposit required for amount under $5000.
Multifuctional Currencies accepted as follows:
6.Support multi-product container mixing, one-stop purchasing. Please provide the estimated quantity, we will offer the loading plan for 20ft/40HQ.
7. Lifetime spare parts and tech support.
8. Factory ISO9001/140001 audited by TUV, products CE ,EPA approved, EUV emission certified, for option.
√ As a factory, we will always support your with the technologies for all of our products.
√ If any warranty case happens, we will get back to you with our solutions within 24 hours.
√ All the spare parts, within our warranty period, are for free.
√ If exceeds the warranty period, we can also provide the spare parts for all of our products.
Sincerely welcome you to establish long-term cooperation with us,to create a bright tomorrow.

---
