Product Details
Product Description
Product Description
Detail

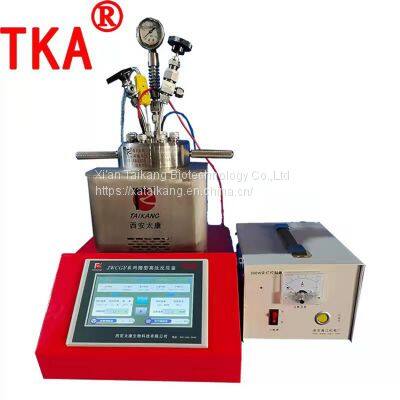

When this product is used for chemical, chemical high-pressure synthesis or catalytic reaction, it is necessary to measure the temperature, measure the rotational speed, add inert gas, stabilize the pressure and realize the required experimental environment such as online sampling.
Technical Highlights
1. The entire reaction process can be observed during the reaction.
2. The observation window adopts JGS2 high transmittance quartz glass to realize online photochemical reaction under high pressure.
Application example
It is suitable for photochemical high pressure reaction, carbon dioxide CO2 reduction, carbon dioxide CO2 reduction to methanol
Reduction of carbon dioxide CO2 to methane CH4, reduction and degradation of nitrogen oxides NOx, high-pressure photocatalytic degradation of formaldehyde solution, etc. Photocatalytic reaction, Fischer-Tropsch reaction, hydrogenation reaction, polymerization reaction, homogeneous reaction and carbon dioxide supercritical reaction, etc.
Model Specification
| PN | Size | Volume | Connecion Model | Pore diameter | Intelligent safety valve | Display Accuracy |
| WGHX-25ML | Φ40*60 | 25ml | Screw Thread | 30mm | Yes | ±1ºC |
| WGHX-50ML | Φ60*80 | 50ml | Flange | 40mm | Yes | ±1ºC |
| WGHX-100L | Φ80*120 | 100ml | Flange | 40mm | Yes | ±1ºC |
| WGHX-200ML | Φ80*140 | 200ml | Flange | 60mm | Yes | ±1ºC |
| WGHX-500ML | Φ100*240 | 500ml | Flange | 60mm | Yes | ±1ºC |
Products Paraeter
| Volume | 25ml,50ml,100ml,200ml,500ml,Can be costomized |
| Reactor Material | Stainless steel 316L/Titanium/Hastelloy (optional) |
| Operating pressure | 10MPa/20MPA(optional) |
| Valve and Connecting material | Stainless steel SU316L |
| Reactor liner container: | Teflon inner sleeve easy to clean |
| Transparent window material: | Using polished JGS2 quartz glass (pressure window) or sapphire mirror |
| Operating temperature | The Max tem.p is 350ºC for Titanium/Hastelloy (optional),The Max tem.p is 250ºC for stainless steel.The tem.p display accuracy is ±1ºC. |
| Max pressure/Min Pressure | 10Mpa/1Pa |
| mixing speed | 0-1500RPM |
| Speed Accuracy | ±5RPM |
| Power Supply | 220V,50HZ, |
| The valve fittings are of European standard, and the interfaces are all standard configuration. The ball valve can be connected with the bottle filled with inert gas to carry out the inert protection experiment reaction, so that the reactant is not in direct contact with the air. |
>>
