Product Details
Product Description
Product Description

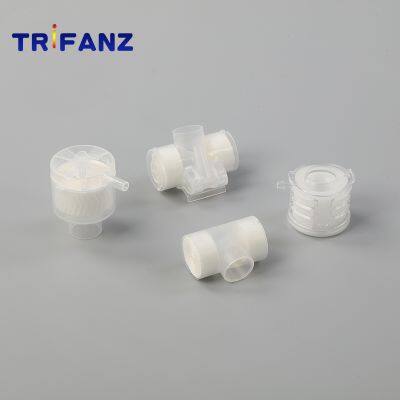

Tracheostomy Filter (HME)
1.Providing enough humidity for physiological need,filtrting bacteria and other particles lager than 0.3um in anesthetic gas and the filter precision achieves 99.99%
2.The shell is made of medical grade ABS and PP with high quality and non-toxic.
3. Adopt imported 3-layer filtering medium with high efficiency performance.
4.With advantages of good sealing,low breathing flow resistance and small dead space.
5.Humidification rate:>=99.99%
6.Temperature output:30°(at 500ml TV)
7.Resistance:<=0.2KPA(at 30L/min)
8.Connector:15mm/22mm
9.prevent particles, bacteria and other pathogens in anesthesia and breathing circuit from entering the respiratory system.
Tracheostomy Filter(HME)
| Description | HME Trach-01 | HME Trach-02 | HME Trach-03 | HME Trach-04 |
| REF NO. | 98.05.051 | 98.05.053 | 98.05.055 | 98.05.057 |
| Material | PP/paper | PP/paper | PP/paper | PP/paper |
| Pressure Drop@30LPM | 50Pa | 50Pa | 50Pa | 50Pa |
| Tidal volume | 200-1000ml | 200-1000ml | 200-1000ml | 200-1000ml |
| Dead space | 60ml | 60 ml | 30ml | 35 ml |
| Weight | 9 g | 7g | 5g | 5 g |
| Connector | 15F | 15F | 15F | 15F |
| Package | 300PCS/CTN | 300PCS/CTN | 300PCS/CTN | 300PCS/CTN |
Company
Hangzhou Trifanz Medical Device Co., Ltd is located in the Hangzhou bio-pharmaceutical hi-tech park, as an innovative enterprise, our company has been supported by the government. Close to Shanghai and Ningbo ports, the transportation is very convenient.
As a leading medical devices manufacturer, Hangzhou Trifanz devotes itself to R&D, production and sales of disposable medical anesthesia and breathing products, such as Laryngeal Mask Airway, Endotracheal Tube, Double lumen endobronchial tube, Heat and Moisture Exchanger/ Breathing Filter, Reinforced Tracheal Tube, Breathing Circuit, as well as other anesthesia and respiration accessaries, we can supply the various solutions of respiration problem.
Our R & D team: a group of experts of over 20 years' experience;
Our hardware: the 100,000 class GMP clean workshop on the medical products;
Our staff: 80% graduated from University;
Our QC system: 100% qualification on the quality aim, Cuanz will strictly follow the international and domestic medical standard.
Our certificate: ISO13485, china FDA, FSC, SGS, COA, also can do the other certificates as per customer's market.
Our OEM/ODM services: Available.
Hangzhou Trifanz views the quality as a soul of our enterprise, will continue to develop the anesthesia and respiration products, aim at developing Cuanz into a first-class high-tech enterprise in the field of anesthesiology in China and even in the world.Packing & Delivery
1.Packing:packed in plastic-paper pouch
2.Packed according to the client requirements
Delivery Detail: about 3-25 days after receipt of deposit
Our Service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.We have well-trained and experienced staffs to co-operation with you.
3. Protection of your sales area, ideas of design and all your private information.
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory, we have rich experience more than 20 years.
2.Q:Where is your factory located? How can i visit there?
A: Our factory is located in Hangzhou city,Zhejiang Province,China.It is about less than 2 hours from Shanghai airport, We can pick you up if you need, welcome to visit our factory.
3.Q:What is the material for your products?
A. The material is Medical grade raw material.
4.Q:Can you make samples?
A: Yes, we can make samples for you.
5.Q:How does your factory do as quality control?A: Quality is the lift of our factory. We have inspector in different post, and there are three inspectors before packing to get best quality products.
6. Q: How could we pay for you?
A: By T/T,western union, moneygram, paypal, or other payments can be negotiable.
7. Q: How to deliver the goods to us?
A: 1st choice: We will make the quotation for the transportation cost to your place, by sea, by air, by express, so you can make the decision, which way you prefer;
2nd choice: If you have your own forwarder in China, we can send the goods to the warehouse according to your forwarder Booking Form.
8.Q: What is your warranty on your products?
A: 3 years quality warranty.
>>
