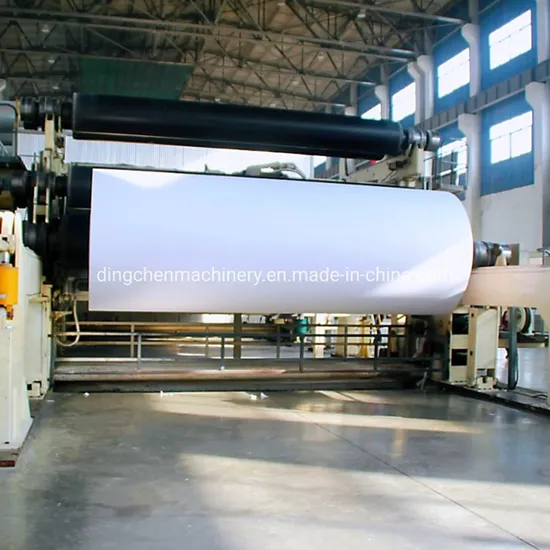

Waste Paper Recycling Plant High Speed Cultural Paper Making Machine

Product Description

Waste Paper Recycling Plant High Speed Cultural Paper Making Machine

Technical parameter:

1	Raw material	Waste paper, virgin pulp
2	Output paper	Cultural paper
3	Paper weight	42-120g/m2
4	Net paper width	2850mm
5	Fourdrinier wire width	3300mm
6	Capacity	50ton/day
7	Working speed	250-300m/min
8	Designing speed	350m/min
9	Rail gauge	3900mm
10	Drive way	Alternating current frequency conversion adjustable speed, sectional drive.

Note:
Financial Analysis can be provided if customers' need to compare with cost of different Raw Materials.

Tips

Different model has different specifications
If customer want to get a quotation as soon as possible, please provide the following information for us :
1.Output paper type;
2.Capacity(tons/24hours);
3.Output paper weight(gram/m2);
4.Raw material
Structure and specifications of main equipment:
1. Fourdrinier part: This part is consisted of open-type flow box, wire frame, forming board, dehydrated board, wet suction box, vacuum box, breast roll, vacuum couch roll, leading roll, pneumatic corrector, the constant tension net tighten device, white water disc, leading roll blade, breast roll blade, deckle squirt cut, wet broke processing unit. It adopts cantilever to change net. The surface of the cantilever is galvanized. The length of forming table is 20m.

2. Press part: 2 pcs of Φ1200×3300mm×3900mm natural marble roll, 2 pcs of Φ1100×3300mm×3900mm rubber roll, rubber shore hardness 95ºC±2, pneumatic pressure device.

3. Dryer part: 26 pcs of Φ1800×3300mm×3900mm alloy dryer can and their arrangement mode is 10 + 10+ sizing machine + 6.
4. There is the dry felt device and semi-closed dryer hoods.

Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure screen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper machine, head box, cylinder mould, dryer cylinder, roller etc.) C.Paper making finished devices (Paper calender, pope reel,size press, paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage 1.Experienced producing team2.Advanced technological strengthProduct Advantage 1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage 1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation Packaging & Shipping
