Heavy Duty Gantry Milling Double Column CNC Vertical Machining Center

Product Description

Product Description

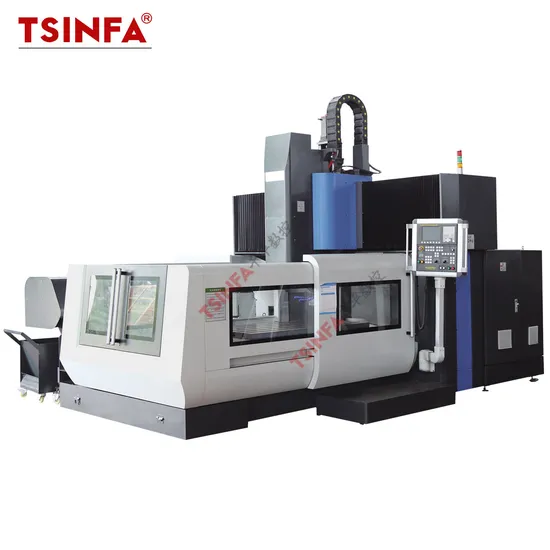

XH1616 Gantry Double Column CNC Milling Machine
The XH1616 machine tool feed axis is controlled by X, Y, and Z coordinates. The three axes are driven by servo motors and can clamp various complex parts such as discs, plates, housings, cams, molds, etc. at one time, and complete various processing steps such as drilling, milling, boring, expanding, reaming, and tapping. It is suitable for the production of multiple varieties and small and medium batches of parts, and can show its superiority in the processing of complex and high-precision parts.

Main structural features
1. The three axes use linear slide rails to effectively improve the cutting force and load-bearing capacity of the machine. It has high rigidity, high positioning accuracy, low noise, and low friction characteristics, and can achieve rapid displacement and the best circular accuracy;
2. The main structural castings are made of high-quality Meehanite cast iron, which has a stable structure and permanently ensures quality;
3. The castings are calculated and analyzed by computer using the finite element analysis method, and the reasonable structural strength and reinforcement ribs are matched to provide high rigidity of the machine;
Main structural features
4. The overall gantry structure shortens the distance from the spindle center to the column, greatly improves cutting performance, and makes it easier to put workpieces on and off the machine;
5. The machine is equipped with an anti-collision device, which can absorb the vibration caused by the worker's operating errors, minimize the damage caused by the collision, and ensure the original accuracy;
6. The machine uses Taiwan's high-precision, high-rigidity, and high-precision spindles to effectively improve processing accuracy;

Specification	Unit	XH1311	XH1616
Table size	mm	1300*1100	1600*1400
T-solt(NO.×width×pitch)	mm	7*16*120	9*22*150
Max. table load	kg	2000	2000
Guide rail type		Linear Guideway	Linear Guideway
X/Y/Z axis travel	mm	1300*1100*530	1600*1700*700
Distance from spindle nose to worktable	mm	100-630	100-800
Distance between two columns	mm	1200	1600
Spindle taper		BT40	BT40/BT50
Spindle speed	rpm	8000	8000/6000
Spindle motor	kw	11	11/15
X/Y/Z axis motor	nm	23/18/18	BT40 with 28/18/18 BT50 with 28/28/28
X/Y/Z axis rapid feed speed	m/min	20/20/18	18/18/18
Magazine type (optional)		Disc	Disc
Magazine Hole Taper		BT40-24	BT40/BT50-24
Positioning accuracy	mm	±0.005	±0.005
Repositioning accuracy	mm	±0.004	±0.004
Overall size(L×W×H)	mm	4000*2500*2700	4000*2600*3000
Machine weight	T	8T	12T

Specification	Unit	XH2017	XH3019
Table size	mm	2100*1400	3000*1500
T-solt(NO.×width×pitch)	mm	7*22*180	9*22*160
Max. table load	kg	5000	12000
Guide rail type		Linear Guideway	X Y Linear Guideway Z Boxway
X/Y/Z axis travel	mm	2100*1800*900	3100*2000*900
Distance from spindle nose to worktable	mm	100-1000	150-1000
Distance between two columns	mm	1700	1900
Spindle taper		BT50	BT50
Spindle speed	rpm	6000	6000
Spindle motor	kw	15	15
X/Y/Z axis motor	nm	30/30/30	40/40/40
X/Y/Z axis rapid feed speed	m/min	15/15/10	12/12/10
Magazine type (optional)		Disc	Disc
Magazine Hole Taper		BT50-24	BT50-24
Positioning accuracy	mm	±0.005	±0.005
Repositioning accuracy	mm	±0.004	±0.004
Overall size(L×W×H)	mm	6000*2800*3700	7500*3500*4500
Machine weight	T	17T	25T
