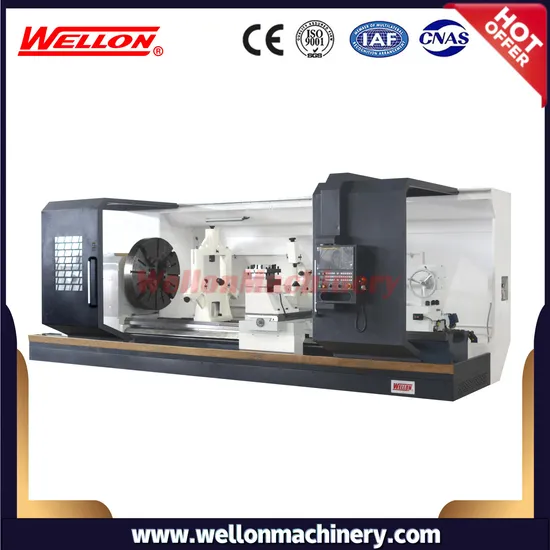

Heavy Duty CNC Turning Lathe Machine CK61100B CK61125B

Product Description

Product Description

Detailed Photos
Product Parameters
Feature:CK Series are economical and practical CNC lathes.With optimized structures, unfailing performance, high quality, simple programming,
and easy handling, they are suitable for turning of complicated shaft, sleeve, and disk type work-pieces such as turning of internal and
external cylindrical, conical, arc surfaces and various threads, and even drilling, boring and reaming holes. And they are especially fit for
turning of diversified work-pieces on small and medium batches. They are of high versatility high efficiency, low inferiority and good
comfort ability. So to be widely used in various trades, such as automobile industry. Petroleum industry, and so on.
Technical parameter:

Model	Unit	CK61125B
Max swing over bed	mm	1250
Max swing over carriage	mm	850
Distance between centers	mm	1500,3000,4000
Spindle bore	mm	130
Spindle taper		MT6
Spindle speed and steps	r/min	2 steps 4-300
Four jaw chuck size	mm	1000
Distance from spindle to ground	mm	1275
X axis rapid moving speed	m/min	4
Z axis rapid moving speed	m/min	4
X axis travel	mm	520
Z axis travel	mm	1350,2850,3850
Tail stock quill diameter	mm	140
Tail stock quill travel	mm	300
Tail stock quill taper		MT6
Guide way width	mm	755
Tool post size	mm	300x300
Tool post shrank size	mm	40x40
Re-positioning accuracy	mm	0.005
Main motor power	kw	22
Coolant pump motor	W	125
Machine width and height	mm	2100X2125
Machine length
1500	mm	4800
3000	mm	6300
4000	mm	7300
Machine weight
1500	kg	11800
3000	kg	13500
4000	kg	14200
Max loading capacity
1500	kg	6000
3000	kg	6500
4000	kg	7000

Standard accessories:

Fanuc 0i-TF controller

4 station electric turret

1000mm 4 jaw chuck

Manual tailstock

MPG

Integrated automatic lubrication system

Coolant system

Lighten system

Dead centers

Center sleeve

Optional accessories:

Hydraulic chuck

Hydraulic tailstock

Steady rest

Follow rest

Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,Double Column
Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
