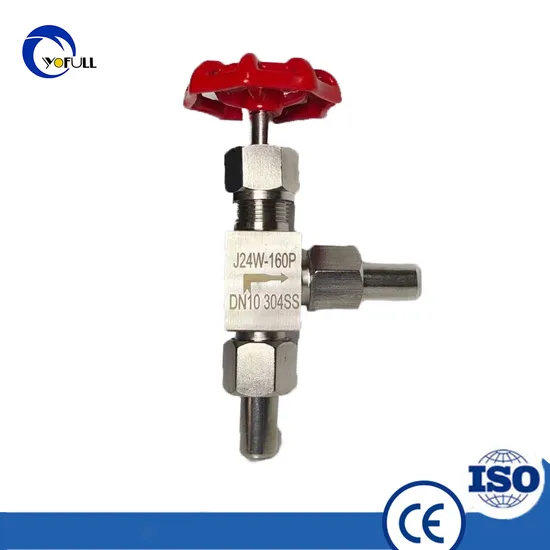

Cast and Forged Thread Bronze/Brass Gate Valve 1/2′ ′ -2′ ′ (15-50mm) Acs Approved Zwg603 /Stainless Steel High Pressure Gauge Valve

US$35.00-300.00 1 Piece (MOQ)

Basic Info.

Processing Type
Mechanical Process
Match Machine
Chemical Fiber Spinning Equipment
Material
Metal
Processing Level
Precision Finishing
Mechanical Process
CNC
Processing Trade
Processing with Material Supplied
Certification
CE, ISO9001: 2000
Customized
Customized
Condition
New
After-sales Service
12months
Nominal Pressure
1.00/1.60MPa
Shell Test Pressure
1.50/2.40MPa
Seal Test Pressure
1.10/1.76MPa
Face to Face Is According to
ISO 5752/API 609/DIN 3202
Transport Package
Seaworthy Package
Specification
see technical parameters
Trademark
Yofull
Origin
China
HS Code
8481804090
Production Capacity
2500sets/Year

Product Description

Nameplate A105/F6a A105/F6aHFS LF2/304 F11/F6aHF F304(L/304(L) F316(L)/316(L) F51/F51
1 Body A105 A105 LF2 F11 F304(L) F316(L) F51
2 Seat 410 410HF 304 410HF 304(L) 316(L) F51
3 Wedge F6a F6a F304 F6aHF F304(L) F316(L) F51
4 Stem 410 410 304 410 304(L) 316(L) F51
5 Gasket 304+
Flexible Graphite		 304+
Flexible Graphite		 304+
Flexible Graphite		 304+
clevible Grapbit		 304+
Flexible Graphite		 304+
Flexible Graphite		 304+
Flexible Graphite
6 Cap A105 A105 LF2 F11 F304(L) F316(L) F51
7 Bolt B7 B7 L7 B16 B8(M) B8(M) B8M
8 Pin 410 410 410 410 304 304 304
9 Packing Gland 410 410 304 410 304 316 F51
10 Live Bolt B7 B7 L7 B16 B8(M) B8(M) B8M
11 Packing Plate A105 A105 LF2 F11 F304 F304 F304
12 Hex Nuts 2H 2H 2H 2H 8(M) 8(M) 8M
13 Stem Nut 410 410 410 410 410 410 410
14 Locking Nut 35 35 35 35 35 35 35
15 Nameplate AL AL AL AL AL AL AL
16 Handwheel A197 A197 A197 A197 A197 A197 A197
17 Lubricating Gasket 410 410 410 410 410 410 410
18 Filler Graphite Graphite Graphite Graphite Graphite Graphite Graphite


Nameplate A105/F6a A105/F6aHFS LF2/304 F11/F6aHF F304(L)/304(L) F316(L)/316(L) F91/410HF
1 Body A105 A105 LF2 F11 F304(L) F316(L) F91
2 Seat 410 410HF 304 410HF 304(L) 316(L 410HF
3 Wedge F6a F6a F304 F6aHF F304(L) F316 F6aHF
4 Stem 410 410 304 410 304(L) 316(L 410
5 C a p A105 A105 LF2 F11 F304(L) E316L F91
6 Pin 410 410 410 410 304 304 410
7 Packing Gland 410 410 304 410 304 316 410
8 Live Bolt B7 B7 L7 B16 B8(M) B8(M) B8
9 Packing Plate A105 A105 LF2 F11 F304 F304 F91
10 Hex Nuts 2H 2H 2H 2H 8(M) 8(M) 8
11 Stem Nut 410 410 410 410 410 410 410
12 Locking Nut 35 35 35 35 35 35 35
13 Nameplate AL AL AL AL AL AL AL
14 Handwheel A197 A197 A197 A197 A197 A197 A190
15 Lubnicating Gasket 410 410 410 410 410 410 410
16 Filler Graphite Graphite Graphite Graphite Graphite Graphite Graphite
17 Set Screw 35 35 35 35 35 35 35
18 Seal Gasket 420 420 304 304 304(L) 3164) 420
19 Self-sealing Ring 304 304 304 304 304 304 316
20 Self-sealing Seat 420 420 304 304 304(L) 3164) F91
21 Nut Spacer 410 410 410 410 410 410 410
22 Tighten Nut Carbon Steel Carbon Steel Carbon Steel Carbon Steel Sainkess Steel Sainless Sreel Carbon Steel

Product Description
Material
 Brass nut and brass Stem , brass body/cap /disc etc.
Surface
 Natural brass
Size
 1/2" to 4"
Testing Pressure
 100% tested with 0.6MPa - 0.8MPa by air or PN20 by water
Samples Time
 1) 2 days - For our existing samples for reference
2) 15 days - If new size, need make the new mould
OEM Acceptable
 Yes
Production Capacity
100,000 pcs each month
Packing Details
Poly bag, inner box, out carton and pallet.
Payment Term
 T/T ,L/C,,D/P,D/A,PAYPAL,WESTERN UNION
Delivery Time
 20 days to 40 days after confirming the order
Minimum Order Quantity
1000-3000 Pieces


Company Profile
Certifications

Related Products
Butterfly Valve
Attend fair
FAQ
Model Selection: Q: How do I choose the right valve model for my line?
A: When it comes to selecting the perfect valve for your line, there are two approaches you can take. First, you can base your decision on your engineering design data, ensuring that the valve is a precise fit for your specific needs. Second, consider key factors such as the raw material and final product of your line, flow capacity, and whether you're optimizing an existing line or building a new one. By taking these factors into account, you can make an informed decision that meets your requirements.
Maintenance and Operation: Q: Is the melt valve easy to install?
A: Installing our melt valve is simple! Just inquire about the installation requirements, and we will provide you with clear instructions. With our guidance, you'll have the melt valve up and running in no time, saving you valuable time and effort.
Customization and Integration: Q: Can the melt valve be customized to suit my specific needs?
A: Absolutely! Our melt valve can be fully customized to meet your unique requirements. Simply let us know your specifications, and we'll make it happen. We believe in providing tailored solutions for our valued customers, ensuring that you get exactly what you need.
Safety and Compliance: Q: What safety features does the melt valve have to ensure smooth and secure operation?
A: Safety is our top priority. To ensure smooth and secure operation, our melt valve requires qualified personnel during operation. This ensures that the valve is handled with the utmost care and expertise, providing you with peace of mind and a secure working environment.
