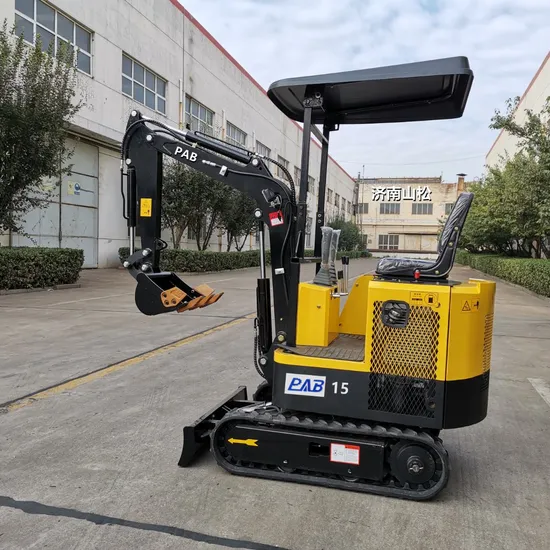

Field Cultivation 1200kg Mini Excavator

Product Description

1200kg Mini Excavator Mini excavators are widely used in farms, farmland, rural construction, municipal construction, orchards, landscaping, afforestation, road maintenance, pipeline laying, material handling, trenching, earthwork, crushing, demolition and other fields. Comfortable and safe operation, energy saving, environmental protection and high efficiency.
This Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.
There are 7 types of mini excavators, each model can be equipped with different engines, boom side sway, chassis extension and so on;

Operating Weight	kg	1200	Minimum Ground Clearance	mm	300
Bucket Capacity	m³	0.035	Track Width	mm	180
Maximum Digging Force	kn	13	Gauge	mm	600
Slewing speed	rpm	12	Maximum unloading height	mm	1800
Engine	Koop192/XR2100	7.6KW/3000 10KW/3600	Track grounding length	mm	1250
Walking Speed	km/h	2	Maximum excavation height	mm	2550
Grounding specific voltage	kpa	22	Maximum excavation depth	mm	1750
Fuel tank capacity	L	8	Maximum excavation range	mm	4500
Hydraulic tank capacity	L	15	Minimum turning radius of tail	mm	700
Maximum flow	L/cc	8	Minimum radius of working device	mm	1150
Rated working pressure	mpa	20	Gradeability	°	30
Length* width*height	mm	2900*1100*2200

Product Application:
Our Mini hydraulic excavator has stable performance and convenient operation. Chang Chai and XR2100 engines can meet the domestic exhaust emission standards, and new cooling fans and large silencers are installed to meet the European noise standards. At the same time, give consideration to the development of urban environmental protection.
Packing or Shipping
1. Packed in wooden cases or containers or according to customer's requirements.
2. You can entrust our freight forwarder, you can also use your own freight forwarder, and we can also provide door-to-door transportation.
1.What's the MOQ? 1 piece or unit.

2. How about the delivery time?
Based on order quantity, normally it takes 20 days for production. Only 3 to 7 days if we have stock on your request size.

3. How many years have you been producing hydraulic breakers and parts?
Over 20 years.

4. Quality & Service:
There will be strict inspection and testing for every order before shipping out. Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded). Free replacement will provide once the failure confirmed caused by our product quality.

5. What's the payment term?
T/T (Telegraphic Transfer) or Western Union. Pictures of products and packages will be sent to our customers before balance is paid.

6. Can you produce according to customers' design?
Yes, we can do customized products.

7. How about the package?
Standard exporting package.

---
