15kw High Speed Inks Mixer

Product Description

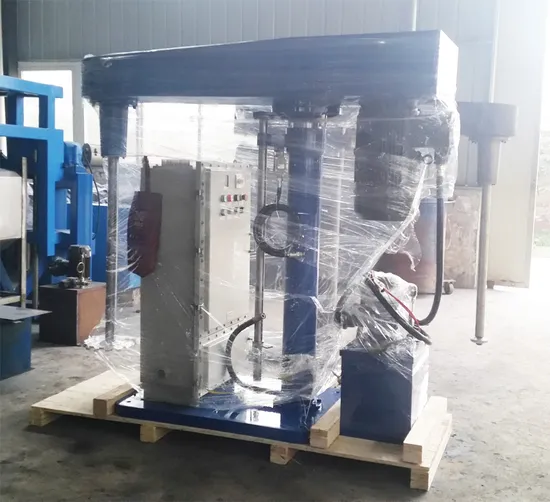

DEGOLD FS series disperser is a kind of machine which is used for stirring, mixing, dissolving and dispersing the materials in liquid and powder solid. This series of agitators can be easily operated with hydraulic elevation and rotation frame. This kind of agitators are widely used for the industries, which produce printing ink, dyestuffs, medicines, coating, chemical and non-metallic materials etc. DEGOLD FS series dispersers are adopting a compacted design which consists of lifting device, driving device, mixing device, pneumatic device etc. The motor has the function of CV lifting; The shaft rotation speed can be changed according to customers' needs. The peripheral velocity will be 17m/s. The high speed of the mixing head makes the raw materials turn over and over so as to shear and mix the materials completely. DEGOLD FS series dispersers' lifting devices are including pneumatic device and hydraulic device. There are 5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW, 37kW, 45kW, 55kW, 75kW. Characteristics: 1. Reliable frequency=conversion speed control; 2. Hydraulic lifting and pneumatic lifting; 3.360degrees; Rotary positioning for convenient using. Note: 1. FS means DEGOLD disperser; 2. "15"means the main motor power: 15kW. 3. "Y" means Hydraulic lifting, "Q" means Pneumatic lifting; 4. "B" means flame-proof/explosion-proof design, and the ordinary explosion-proof is not marked. Any questions and opinions are great appreciated here all way.

		FS5.5	FS7.5	FS11	FS15	FS18.5	FS22	FS30	FS37	FS45	FS55	FS75
Main motor power (kW)		5.5	7.5	11	15	18.5	22	30	37	45	55	75
Dispersion shaft speed (r/min)		0-1500						0-1200			0-1000
Height of shaft lifting (mm)		1200						1400			1600
Estimated processing batch≤L(we take water as example)		350	400	450	500	700	1000	1500	2000	2500	3000	4000
Dispersion discs diameter (mm)	L	1655			2150			2120			2500
	W	570			800			900			1000
	H	1880			1960			2200			2500
Net weight (kg)		1140	1155	1165	1830	1850	1885	2000	2055	2085	2310	2425

---
