Supplier FRP Molded Grating Production Machine

Product Description

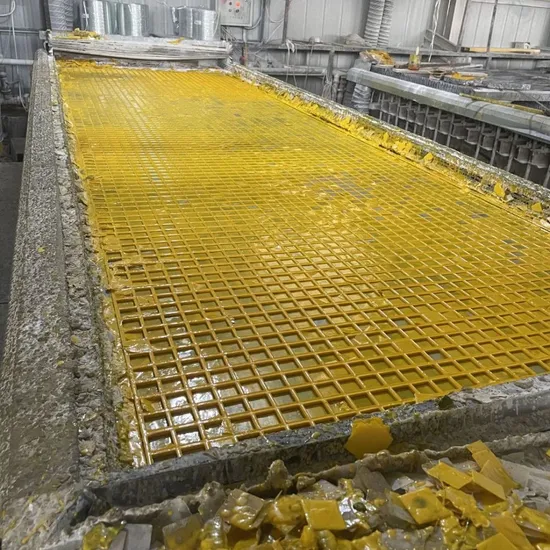

1220*4920* 38mm FRP grating mold is a non-standard model of FRP molded grating machine,
as the recent car gradually into the homes of ordinary people, around the car and car beauty shop
in the ascendant.FRP grating in the field of caravans to promote, making the glass car grille market
really formed, expanding the FRP grating has a new field. We have designed this specification in
accordance with this form of equipment, because you can also in the direction of the length of the
production of 3660 and 4000 grid plate, so the mold once listed, immediately received the majority
of glass steel grille manufacturers of all ages. The following technical information on the equipment
described below:
First, the mold forming surface size: 1220* 4920* 40mm, at the same times the production of
arbitrary specifications of the card grille. For example: 1220*3660mm or 1220*4000mm board
can be produced.
Second, the module specifications: the upper end: 31.1 * 31.1mm, the lower end: 33.1* 33.1mm, the
module height of 40 mm. The size of the entire module deviation is not greater than 0.08mm. Of
course, we can also adjust the size of the module according to customer requirements, here
omitted 50 words, you know!
Third, the module material and technology: the module selection of high-quality #45steel, after
sawing cutting, grinding machine flat head, milling machine open oblique, grinding machine
leveling, drilling, sanding chamfering, cloth wheel polishing, plating hard chrome and other 8
processes Into, which is the most attention to the module plating, to strictly accept the seventy-nine
forty-nine minutes of plating, in the module surface to form 0.05-0.07 mm coating. The whole
process gives us an exclusive tour of another version of a steel art tour.
Fourth, the product size: Center distance: 38.1* 38.1mm, height: 38 mm, product ribs thickness,
the next 5mm \ 7mm. Products in the square meter in the 19.5 kg, material consumption, close
porcelain real.
Fifth, the color: According to customer requirements for FRP grating equipment, the general
factory color for the general-purpose motor gray.
na
Six, roof thickness: 14mm, material S45C steel, roof surface milling machine trim, large-scale
sanding machine high-speed polishing. seven, bottom plate thickness: 14mm, matenai g235Aebei a
large gantry milling machine planning. 8, the trip part: the stroke of the equipment is the central
part of the movement of the mold, we use 25 mm thick s45C steel plate, after milling machine
precision machining to ensure that the size of strict fit, combined with eight 45 mm square steel
as the support, to ensure that the whole stroke advance and retreat, smooth operation. Cylinder
size diameter 110mm, length 350mm, cylinder pillow selection of wide Q235A forged steel, super
pressure.
heb
Nine, mold overall appearance: wide 1300* long 5730 * high 850 mm. The height of the mold can
be adjusted according to the grille production process selected by the customer. For example,
choose a single pull the yarn customers; our mold height is generally not more than 750 mm.

---
