700L Steel Crawler Type High Altitude Pressure Tile Equipment Lifting Platform

Product Description

Product Description

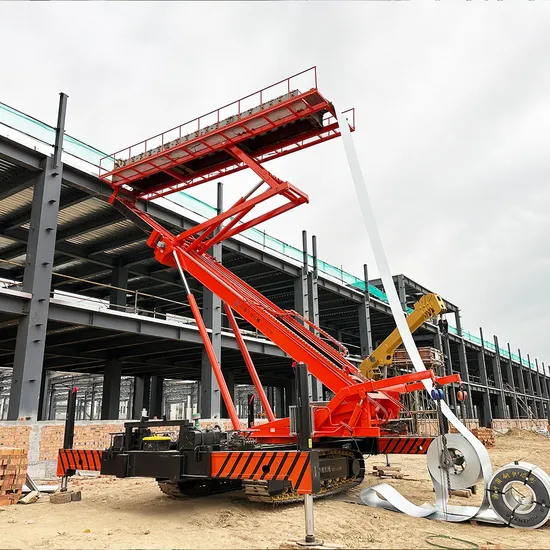

Crawler-type high altitude press is an upgraded version of truck-type high altitude press, which requires vehicle transportation, while crawler-type high altitude press is a fully automatic high altitude Angle press that can walk freely in muddy and rainy areas driven by tracks. The equipment is a crawler-type base that adds track drive. In order to enable the equipment to walk freely on the site of muddy potholes, this equipment has been frequently used in the southern region.

Sheet material for roof and wall panels	Color steel plate, galvanized plate, aluminized manganese plate
Suitable for molding press	All Kok Chi series and Kok Chi, fritillary plate, roof plate forming machine, motor + reducer drive, hydraulic shear type
Add-on crane function (optional)	Hydraulic drive, can lift 8T
Required voltage and power	380V, 18KW
Thickness of sheet material for roof and wall panels	0.3 mm - 1.0 mm
Specifications after installation of tile press: length × width × height	12 m x 3 m x 3.3 m/12 m x 2.4 m x 3 m

Equipment features
The crane and reverse ceiling are optional and cost extra
1. crawler type high-altitude tile press equipment lifting height of 5-30 meters (can be selected according to the average height of the customer's usual project);
2. crawler type high-altitude tile press equipment platform bearing 6-20 tons (can be selected according to the weight of customer tile press);
3. through the track self-driven forward, at the same time, the equipment can be completely controlled by remote control (including the track), so that the high-altitude tile press has some weapons to deal with the harsh terrain.
4. The launch of crawler type high-altitude tile press is not only the demand of the market, but also the product of continuous innovation of the company's production base. Crawler type high-altitude tile press equipment can not only walk on rugged and muddy roads
5. through the remote control for forward, backward, lifting, tile and other operations, the operator can stand at a distance of more than ten meters to control as desired, so as to ensure the personal safety of the operator, but also to complete a series of complex operations on the ground to ensure that all work in one go.
Company Profile
Henan Huaying Machinery Equipment Co., Ltd. has a variety of models to choose from. Lifting 17 meters bearing 8 tons of high-altitude shingle equipment, lifting 18.5 meters bearing 8 tons of high-altitude shingle equipment, lifting 21 meters bearing 8 tons of high-altitude shingle equipment, lifting 18.5 meters bearing 11 tons of high-altitude shingle equipment, lifting 23 meters bearing 11 tons of high-altitude shingle equipment, etc., Huaying Machinery in the field of high-altitude upper tile equipment technology constantly design innovation, research and development improvement to meet the production needs of customers; A variety of equipment produced by the company has obtained national patents.
Our aim is: excellent product quality, perfect service system, good company reputation, warm service attitude.
"Business letter based, sincere ambition to go the world" for the purpose, in the spirit of mutual benefit and major customers to establish long-term friendly partnership. We are willing to excellent product quality, timely delivery, perfect after-sales service to meet customer needs, and friends from all walks of life to create brilliant!
Recommend For You
Truck-mounted high altitude tile press Reverse ceiling equipment Crawler spider hanger
Exhibition dynamics
Certifications
FAQ
Q1: High altitude tile press working noise?
A1:Lack of lubrication in key parts, resulting in serious friction between parts resulting in abnormal sound; Solution: lubricate the key parts.
Q2:High-altitude tile machine can not lift up?
A2:Hydraulic system damage, or due to hydraulic oil problems; Solution: Find professional engineers to solve.
Q3:The phenomenon of sinking of the high-altitude tile press?
A3:Due to the loss of liquid pressure, or the leakage of hydraulic valves and seals; Solution: Replace the damaged parts and replace the hydraulic valves and seals.

---
