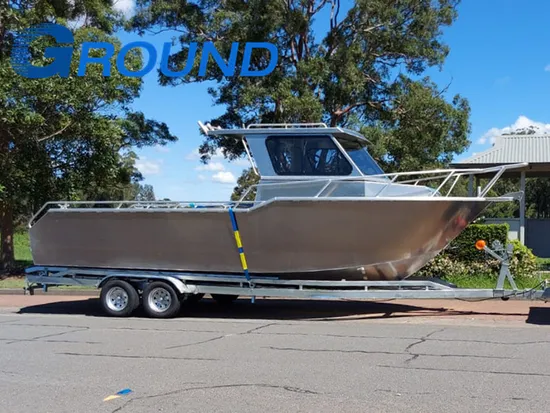

8.50m 28FT Hot Sale Enclosed Cabin and Hard Top Roof Unpainted Bare Aluminum Fishing Boat

Product Description

Orion N800
Commercial Fishing Boat
Ground Orion Series are designed special for saltwater commercial fishing. This hull has a very front cabin with
large deck space, strong hard top and excellent chine. 6mm bottom plate make it strong enough just like a tank
when cruising off-shore. Our unique deep V design and proper dead-rise give Orion a good performance in the
rough ocean, speedy, smooth, great stability and excellence balance. It's really a true long range craft, If you are
a professional fisher man, it's your best choice.
Specifications

Model No.	Orion N800	Approved Passengers	8
Brand Name	GROUND	Hull Material	Marine Al-Mg 5083
Hull Length Overall	8.46m	Hull Weight	1600kg
Beam	2.52m	Bottom Plate	6.0mm
Engine Type	Outboard Motor	Side Plate	5.0mm
Recommended Power	150hp-300hp	Boat Type	Enclosed Cabin
Max Speed	35kn	Use	Saltwater Leisure and Fishing

Standard Features and Options

Standard Features		Options
Towing eye	Yes	Outboard Motor
Bollard and Cleat	Yes	Hydraulic Steering
Handrails (Front, Side, Cabin, Roof)	Yes	Navigation Instruments
Bow Sprit and Roller	Yes	Navigation Lights
Self Draining Anchor Well	Yes	Switch Pannel
Rod Holders	Yes	Luxury Seats
Internal Fuel Tank 200L X1	Yes	Bench Seat/Folding Seat
Auto Bilge Pump X1	Yes	Fuel Tank Upgrade
Self Draining Enclosed Deck	Yes	Deck Wash Kit
Checker Plate/Plain Plate Floor	Yes	Rear Step Platform
Large Deck Space	Yes	Heavy Duty Ladder
Raised Gunnel Desing	Yes	Transom Dive Door
Aluminum Fender	Yes	Front Cabin Hatch
Side Storage Pockets	Yes	Bait Table with Rod Holders
Rear Drainage Hole and Bungs	Yes	Kill Tank
Battery Storage	Yes	Whole Piece Tempered Glass Windscreen
Console and Large Dash Room	Yes	Wiper
Aluminum Box Seat X2	Yes	Survey Flotation Foam
Detachable Cabin and Hard Top	Yes	Gloss Paint outside and inside
Extended Roof with Rockets launchers	Yes
Tempered Glass Sliding Windows	Yes
Headroom with Door	Yes
Live Bait Tank	Yes
Transom Transducer Bracket	Yes
Standard Flotation Foam under Deck	Yes

Orion Series

Boat ID	Length(m)	Beam(m)	Bottom (mm)	Side (mm)	Recommend Power(hp)
Orion N650	6.80	2.4	6.0	5.0	115-200
Orion N700	7.40	2.5	6.0	5.0	115-200
Orion N760	8.05	2.5	6.0	5.0	150-300
Orion N800	8.46	2.5	6.0	5.0	150-300
Orion N900	9.50	2.5/2.7	6.0	5.0	250-500
Orion N980	10.30	3.0	6.0	5.0	300-600

Production Details
Please contact us for more information.
