60-200mm O. D Transformer Tape Wrapping Toroidal Winding Machine

Product Description

Product Description

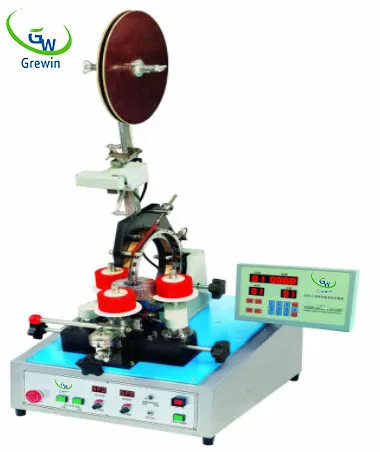

Automatic toroidal transformer winding machine adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-taping machine. it is used for wrapping the insulation tape on the toroidal core and windings. it is best suited to toroidal inductor, toroidal transformer, toroidal current transformer, toroidal coil, toroid choke coil, power inductors, power magnetics, UPS inductor, converter inductors, heavy toroidal core,etc.
Specification

Tape width	10(8,12,15)	Max.taping speed	200rpm
Max.final coil.O.D	φ60-200	Tape spacing	Proportional linkage
Min.final coil.I.D	φ30	Supply voltage	AC 220V(50Hz)
Max.finalcoil height	80	Mechanical dimensions	550*500*1100
Controller storage capacity Programs	29 (set)	Weight	100kg

GWTM-0118 (taping machine/Mag.OD.400)
(unit): mm

Model	GMTM-750
Tape width	6 (8) mm	Max. taping speed	250 rpm
Max. final coil O. D.	Φ80mm	Tape spacing	Proportional linkage
Min. final coil I. D.	Φ16mm	Supply voltage	AC 220V(50Hz)
Max. final coil height	40mm	Mechanical dimensions	550*500*1100
Controller storage capacity programs	29(set)	Weight	93kg
Model	GMTM-850
Tape width	8(10, 12, 15)mm	Max. taping speed	250 rpm
Max. final coil O. D.	Φ45 -200mm	Tape spacing	Proportional linkage
Min. final coil I. D.	Φ25mm	Supply voltage	AC 220V(50Hz)
Max. final coil height	80mm	Mechanical dimensions	550*500*1100
Controller storage capacity programs	29(set)	Weight	100kg
Model	GMTM-0118
Tape width	10(8, 12, 15)mm	Max. taping speed	200 rpm
Max. final coil O. D.	Φ60 -200mm	Tape spacing	Proportional linkage
Min. final coil I. D.	Φ30mm	Supply voltage	AC 220V(50Hz)
Max. final coil height	80mm	Mechanical dimensions	550*500*1100
Controller storage capacity programs	29(set)	Weight	100kg
Model	GMTM-0218
Tape width	12(8, 10, 15)mm	Max. taping speed	250 rpm
Max. final coil O. D.	Φ50 -200mm	Tape spacing	Proportional linkage
Min. final coil I. D.	Φ35mm	Supply voltage	AC 220V(50Hz)
Max. final coil height	80mm	Mechanical dimensions	550*500*1100
Controller storage capacity programs	29(set)	Weight	100kg
Model	GMTM-0318
Tape width	15(8, 10, 12, 20)mm	Max. taping speed	200 rpm
Max. final coil O. D.	Φ60 -200mm	Tape spacing	Proportional linkage
Min. final coil I. D.	Φ45mm	Supply voltage	AC 220V(50Hz)
Max. final coil height	100mm	Mechanical dimensions	550*500*1200
Controller storage capacity programs	29(set)	Weight	100kg
Model	GMTM-0418
Tape width	15 (20, 25, 30)mm	Max. taping speed	120 rpm
Max. final coil O. D.	Φ130 -650mm	Tape spacing	Proportional linkage
Min. final coil I. D.	Φ60mm	Supply voltage	AC 220V(50Hz)
Max. final coil height	150mm	Mechanical dimensions	900*600*1800
Controller storage capacity programs	29(set)	Weight	240kg
Model	GMTM-0518
Tape width	15 (20, 25, 30)mm	Max. taping speed	120 rpm
Max. final coil O. D.	Φ250 -800mm	Tape spacing	Proportional linkage
Min. final coil I. D.	Φ80mm	Supply voltage	AC 220V(50Hz)
Max. final coil height	300mm	Mechanical dimensions	1000*900*2200
Controller storage capacity programs	29(set)	Weight	350kg
Model	GMTM-0618
Wire diameter	1.2-4.5	Max. winding speed	150 rpm
Max. final coil O. D.	Φ250 -1000mm	Wire spacing	Proportional linkage
Min. final coil I. D.	Φ80mm	Supply voltage	AC 220V(50Hz)
Max. final coil height	320mm	Mechanical dimensions	900*600*1350
Controller storage capacity programs	29(set)	Weight	240kg
Model	GWJ-0961
Tape width	15(8,10,12,20)	Max. taping speed	200 rpm
Max. final coil O. D.	φ65-430,φ55	Tape spacing	Proportional linkage
Min. final coil I. D.	φ45-385,φ35	Supply voltage	AC 220V(50Hz)
Max. final coil height	80mm	Mechanical dimensions	1000×950×780
Controller storage capacity programs	29(set)	Weight	110kg

Related Products
1.GWM-0119 Gear type toroidal coil winding machine

Wire diameter	0.70-2.50	Max.winding speed	200rpm
Max.final coil.O.D	φ60-200	Wire spacing	Proportional linkage
Min.final coil.I.D	φ40	Supply voltage	AC 220V(50Hz)
Max.finalcoil height	100	Mechanical dimensions	550*500*780
Controller storage capacity Programs	29 (set)	Weight	94kg

GWM-0119(winding machine/Mag.OD.400)
(unit): mm
2.GWSM-0219B Gear type toroidal coil winding machine

Wire diameter	0.12-0.40	Max.winding speed	700rpm
Max.final coil.O.D	φ60-200	Wire spacing	Proportional linkage
Min.final coil.I.D	φ20	Supply voltage	AC 220V(50Hz)
Max.finalcoil height	80	Mechanical dimensions	550*500*700
Controller storage capacity Programs	29 (set)	Weight	83kg

GWSM-0219B (winding machine/Mag.OD.400)
(unit): mm
2.GW-9751i high torsion coil winding machine

Wire diameter	0.50-1.60	Machine Revolution	0-3000rpm
Spread width	200mm	Winding width	200mm
winding motor	1/2HP DC motor	Supply voltage	AC 220V(50Hz)
spread motor	stepping motor	Mechanical dimensions	390*580*430
Memory number	999	Weight	32kgs

GW-9751i (winding machine/Mag.OD.400)
(unit): mm
3.GW-9800 transformer coil winding machine

Wire diameter	0.08-1.00	Machine Revolution	0-3000rpm
Spread width	200mm	Winding width	200mm
winding motor	1/8HP DC motor	Supply voltage	AC 220V(50Hz)
spread motor	stepping motor	Mechanical dimensions	760*680*720
Memory number	999	Weight	32kgs

GW-9800 (winding machine/Mag.OD.400)
(unit): mm
Why Choose Us
1.operating videos
2.24 hours technical support
3.1 year free Warranty 4.Free training.
5. OEM/ODM accept
Company Information and Profile
We-TIANJIN GREWIN GROUP is expert in machines lines for more than 31 Years. Our Grewin have ISO9001:2015 approvals.
Contect us
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.
Alice.Lee
Tianjin Grewin Technology Co.,Ltd.
Web:transformer.en.made-in-china.com
Address: 2# MeiNian Plaza No.16 DongTing Road,Hexi Distr,300222,Tianjin China.

---
