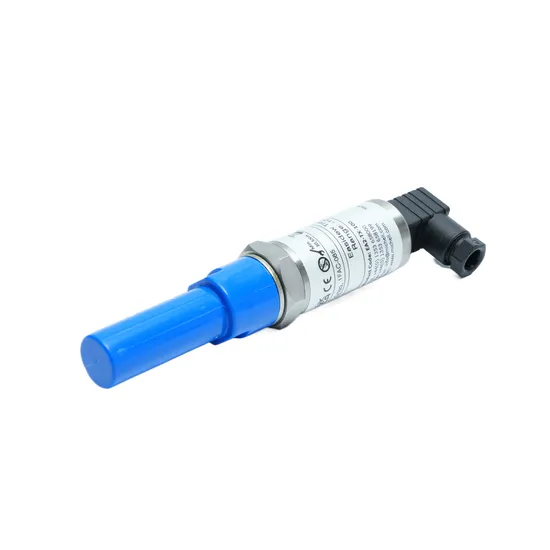

Michell Easidew Dew-Point Transmitter Dew Point Sensor Compressor Gas Humidity Detection
US$850.00-950.00
1 sets
(MOQ)
Basic Info.
Model NO.
Easidew
Brand
Michell
Customized
Non-Customized
Portable
Non Portable
Certification
CE
Gas
Compressed Gas
Type
Dew Point Sensor
Response Time
5 Mins to T95 (Dry to Wet)
Detect Range
-100 to 20 Deg C
Material
316 Stainless Steel
Application
Compressor Gas
Customized Support
OEM
Power
12-28 VDC
Thread
5/8" - 18 Unf
Transport Package
Export Carton
Specification
316 stainless steel
Trademark
Michell
Origin
United Kingdom
HS Code
8537101190
Production Capacity
10000 PCS Per Year
Packaging & Delivery
Package Size
15.00cm * 10.00cm * 8.00cm
Package Gross Weight
0.500kg
Product Description
Michell Easidew -100 to 20 Deg C 4-20 Ma Output RS485 Communication Dew Point Sensor Product Description The Easidew Transmitter is designed for ease of use,incorporating all the features needed to make installation and operation as simple as possible. For the fi rst time, dewpoint measurement is made as accessible as temperature and pressure with this fully confi gured, calibrated transmitter that can be instantly incorporated into your air or gas management and control system. Detailed Photos Product Advantages Highlights: • 2-wire loop powered connection • Dew point or ppm moisture content • IP66 (NEMA 4) • Excellent sensor protection • Measurement range -100 to +20°C (-148 to +68°F) • Operating temperature -40 to +60°C (-40 to +140°F) • Fast response Performance: Measurement range (dp) -100 to +20°C (-148 to +68°F) dew point Accuracy (dp) ±2°C (±3.6°F) dew point Response time 5 mins to T95 (dry to wet) Repeatability 0.5°C (0.9°F) dew point Product Parameters Electrical output/input: Output signal 4-20 mA (2-wire connection, current source) User confi gurable over range Output Dew point, moisture content for ppmV Output range Dew point: -100 to +20°C (-148 to +68°F) Moisture content in gas: 0-3000 ppmV Supply voltage 12-28 VDC Load resistance Max 250 Ω @ 12 V (500 Ω @ 24 V) Current consumption 20 mA max Operating conditions: Operating humidity 0-100% RH Operating temperature -40 to +60°C (-40 to +140°F) Operating pressure 45 MPa (450 barg / 6500 psig) max Flow rate 1 to 5 Nl/min (2.1 to 10.6 scfh) mounted in standard sampling block; 0 to 10 m/sec (0 to 32.8 fps) direct insertion Temperature coeffi cient Temp compensated across operating temp range Product Dimensions More Products Company Profile
