Milling Tools Tool Holders with Balanced Bt40 Bt50 Sk40 Er32

Product Description

CNC Milling Tools Precision Sk40 Er32 Tool Holders DIN69871. Sk40 BT40 BT50 Fmb Tool Holders with Balanced G2.5 HSK63 HSK100 Company Profile

Pingyuan Haotian Machinery(HT-TOOLS) is located in the largest machine tool accessory base,we are professional manufacture high precision drill chucks, collet chucks,quick change chucks and special purpose chucks, as well as the collets and accessories that go with them. Our company and its products are highly respected at home, in China, as well as around the world in such countries as Europe,the Middle East, North America,South Amercia and Southeast Asia.
Our head office is located in Pingyuan County and there are two factories located in
east area of economic Development Area. We wholeheartedly encourage domestic and foreign.
Product Description

1.High precision DIN69871 BT30 BT40 BT50 SLN6 SLN8 SLN10 SLN18 SLN20 SLN 25 SLN32 SLN40 collet chuck made of 40Cr and 20 CrMnTi
2.High precision DIN69871 BT30 BT40 BT50 SLN6 SLN8 SLN10 SLN18 SLN20 SLN 25 SLN32 SLN40 collet chuck accuracy 0.005mm
3.High precision DIN69871 BT30 BT40 BT50 SLN6 SLN8 SLN10 SLN18 SLN20 SLN 25 SLN32 SLN40 collet chuck Hardness HRC48-52
4.Type BT30 BT40 BT45 BT50
5.ER collet packaging:Plastic box Carton

HT-0083		END MILL ADAPTERS
Order No. BTxd-L1	L	D	D1	L2	L3	Wt(kg)
BT40 x 6-50	115.4	25	44.45	18		0.96
BT40 x 6-60	125.4	25	44.45	18		0.98
BT40 x 8-50	115.4	28	44.45	18		1.00
BT40 x 10-63	128.4	35	44.45	20		1.08
BT40 x 12-63	128.4	42	44.45	22.5		1.20
BT40 x 14-63	128.4	44	44.45	22.5		1.22
BT40 x 16-63	128.4	48	44.45	24		1.24
BT40 x 16-70	135.4	48	44.45	24		1.30
BT40 x 18-63	128.4	50	44.45	24		1.36
BT40 x 20-63	128.4	52	44.45	25		1.36
BT40 x 20-70	135.4	52	44.45	25		2.10
BT40 x 25-90	155.4	65	44.45	24	25	2.07
BT40 x 25-100	165.4	65	44.45	24	25	2.08
BT40 x 32-100	165.4	72	44.45	24	28	2.25
BT40 x 32-110	175.4	72	44.45	24	28	2.30
BT40 x 40-120	185.4	90	44.45	30	32	2.50
BT40 x 40-140	205.4	90	44.45	30	32	2.80
BT50 x 6-63	164.8	25	69.85	18		3.20
BT50 x 8-63	164.8	28	69.85	18		3.23
BT50 x 10-63	164.8	35	69.85	20		3.24
BT50 x 12-80	181.8	42	69.85	22.5		3.36
BT50 x 16-80	181.8	48	69.85	24		3.48
BT50 x 20-80	181.8	52	69.85	25		3.52
BT50 x 25-100	201.8	65	69.85	24	25	4.28
BT50 x 25-105	206.8	65	69.85	24	25	4.30
BT50 x 25-150	251.8	65	69.85	24	25	4.35
BT50 x 25-200	301.8	65	69.85	24	25	4.40
BT50 x 32-100	201.8	72	69.85	24	28	4.44
BT50 x 32-105	206.8	72	69.85	24	28	4.56
BT50 x 40-115	216.8	90	69.85	30	32	4.58
BT50 x 40-120	221.8	90	69.85	30	32	4.58
BT50 x 50-150	251.8	100	69.85	35	35	4.90
1.When order please indicate the hilt the concrete form.if needs in thecenter cold and the flange water leakage hilt.please mark AD/B 2.According to nees to be possible go provide the balanced hilt.the standard precision is G6.3/12000rpm,the precise precision is G2.5/20000rpm

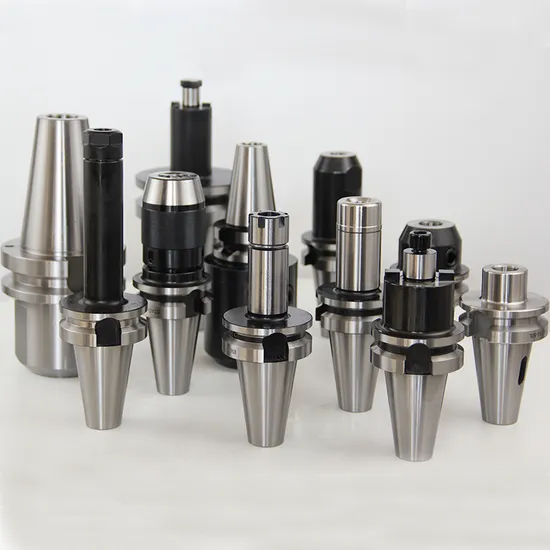

Detailed Photos

Main Products
Machine tool Accessories, please check below to know our main items.
Tool Holder Shanks: BT Tool Holders, DIN69871 SK Tool Holders, NT Tooling, CAT30 CAT40 CAT50 Tool Holders, HSK Tool Holders, DIN 69880 VDI Tool Holders, Morse Taper, Straight Shank Tool Holders, etc.
Tool Holders: Collet Chucks, Milling Chucks, Face Mill Holders, Weldon End Mill Holders, Morse Taper Adapters, Drill Chucks, Tapping Chucks, Shrink Chucks, Thread End Mill Tool Holders, Screw in Milling Cutter Holders, etc.
Collet: ER Collets, ERC Collets, ERG Collets,Milling Chuck set ,Straight Collets, OZ Collets, etc.
Accessories: Tool Holder Bushing, Nut and Spanner, Pull Stud, Tool Holder Locking Device,Machine Vise,Live Center etc.
Welcome to the link to learn more.
Packaging & Shipping

Production
Our Advantages

Our Services
1.OEM service
2.Big capacity
3.Your inquiry related to our products or prices will be replied in 24 hours.
4.Well-trained and experienced staffs to answer all your enquires in fluent English.
5.Any of your customized personal needs we will try our best to help you to design and put into product.
6.Strict inspection during the process of manufacturing.
7.Customer satisfaction is our number one priority.
Why choos us ?
1.Pingyuan Haotian Machinery(HT-TOOLS) have a strong sales team, rich experience in foreign trade export.
2.HT-TOOLS brand has a long history.
3.Pingyuan Haotian Machinery(HT-TOOLS) since the establishment of foreign trade company in 2003, the company has been 16 years old and has rich resources and experience.
4.Pingyuan Haotian Machinery(HT-TOOLS) is located in China's largest machine tool accessories production and processing base, the plains machine tool parts factory is as large as 200, operating products rich and not monotonous.
5.Products from Pingyuan Haotian machinery (HT-TOOLS) with long service life,stable product quality and stable runout.
6.HT-TOOLS pay more attention to production details.
7.The packing is firm and exquisite.
8.HT-TOOLS support non-standard customization.
9.HT-TOOLS have ours own strong R&D team,strong innovation ability.
10.Sales reply accurately and timely and professionally.
FAQ
1.Are you factory or Trade Company?
We are Industry and trade integration.
2.Could you supply samples?
Yes, we can supply.however customer need payment samples charge and freight cost.
We accept freight collect.
3.Where do you export?
The whole world. Europe and Ameria is our main market.
4.Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.
5.What's the accuracy of ER Collet?
We have three kinds. 0.005mm 0.01mm and 0.015mm.
6. What are the shipping ways?
By international express, by air, by sea are all ok.
7. Do you have minimum order quantity?
Conventional Products don't have.
8. What's your payment way?
T/T, L/C,Western Union and so on.
9. If could laser Brand on products ?
Yes,usually products without any brand,we could laser customers logo on producs.
10.What's the packaging ?
It's according customers request,if no request,we use ours package.
The packaging there are Plastic box,Carton.
