US$15,400.00
|
1 Piece
(MOQ)
|
Basic Info.
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Automatic
Max. Size of Alloy
Max. Size of Alloy Wheel 30 Inch
Max Depth of Wheels(mm)
550
No&Type of Guide in X-Axis
Two Linear
No&Type of Guide in Z-Axis
Four Linear
Range of Spindle Speed(Rpm)
50-1500
Spindle Type/Power
5.5kw(Servo Motor)
Type of Tool Holder
4 Position Electric
Max Size of Tool Post
25X25mm
Detection Method
Ruby Probe
Transport Package
Wooden Case
Specification
2200/1620/1870mm
Production Capacity
20/Month
Product Description
NOTE: The currency exchange rate fluctuates greatly, please consult customer service for the best price.

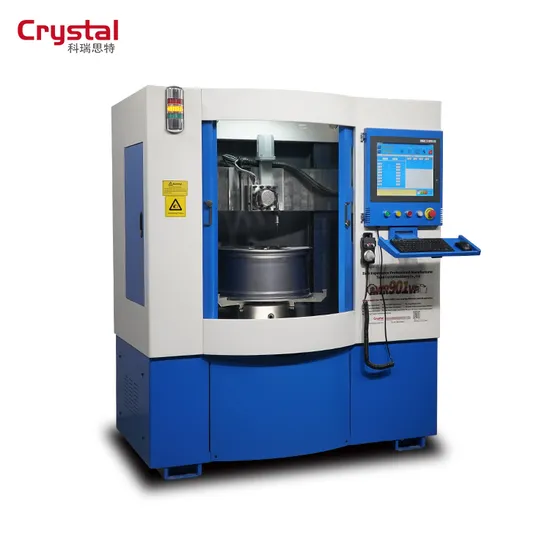

In order to meet the needs of the market, we independently developed the verticalwheel repair machine, AWR901VP. Based on years of experience in the manufacture, sales and combined with users' feedback, we have carried out a variety of user friendly designs. Its floor space is just 1 .65 square meters while the cutting size up to 30". Gantry structure, cast iron body, 6 linear rails, electric tools' holder, multi-touch PC panel, high level consideration of security and automation designs make this machine being one of the most desirable diamond cutting wheel repair machine for wheel repair shop owners. It can realize various repair effects such as mirror finish and different density textured finish etc.
>>
