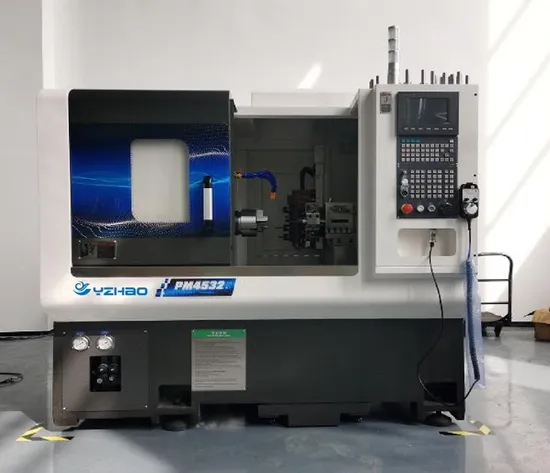

Equipped with Voltage Protection High Precision RoHS Certification Pm4532 Metal Lathe CNC Machine Tools

Product Description

Detailed Photos

Product Parameters

Parameter

Unit

PM4532

Max. Swing Diameter Over Bed

mm

600

Max. Turning Diameter

mm

320

Max. Turning Length

mm

320

Center Height from Spindle to Tool Table

mm

99

Center Height from Spindle to Ground

mm

≈1050

X Axis Travel

mm

350

Z Axis Travel

mm

340

Spindle Nose Size

N/A

A2-5

Hydraulic Clamping

collet

45

Spindle Bore Diameter

mm

56

Max. Bar Capacity (inner/outer)

mm

45/35

Spindle Motor Power

kw

11.7

Spindle Rated Speed/Max. Speed

r/min

2000/5000

Spindle Rated Torque/Max. Torque

N

56/ 159

X/Z Axis Rapid Traverse (GO)

m/min

20

Tool Holder Quantity

Piece

4

Tool Shank Size

mm

20

Boring Tool Holder

mm

φ25

Optional Turret Center Height

CM

Backside 63

X/Z Axis Rapid Traverse (GO) axis Repeatability

mm

0.003

Cooling Tank Capacity

L

68

Hydraulic Tank Capacity

L

40

Machine Full Loading Power

kw

12

Dimension(L x W x H)

mm

1968 x 1925x 1972

Total Machine Weight

kg

2050

Warranty

Month

12

Standard Configuration

No.

Item

Brand/Model

From

Qty

1

Lathe bed

Horizontal flat bed HT300 casted iron

China

1

2

CNC system

Syntec 22TB

Taiwan

1

3

Servo Motor

Syntec

Taiwan

1

4

Main spindle

Gongtie Motorized Spindle

China

1

5

Spindle driven motor

Syntec SMH Series

Taiwan

1

6

Spindle coder

Syntec

Taiwan

1

7

Spindle bearing

KOYO

Japan

5

8

Spindle coolant system

Xinfu

China

1

9

Screw

PMI 3210 ball screw

Taiwan

2

10

Guide way

PMI 35 roller linear guide way

Taiwan

4

11

Axes motor

Syntec AM5

Taiwan

2

12

Turret

8 station hydraulic turret

China

1

13

Tool holder

4 tool holders + 4 live tool holders

China

1

14

Hydraulic System

Seven Ocean

Taiwan

1

15

Lubrication System

Ishan

Taiwan

1

16

Cooling system

Luikar

Taiwan

1

17

Tool box

Gongtie

China

1

18

Low pressure electrics

Schneider

France

1

Delivery item with machine
No.		Item										Qty.					Remark
1		Operating manual										1
2		Certification										1
3		Packing list										1
4		Electric schematic diagram										1
5		CNC system operating manual															PDF
6		Maintain manual															PDF
7		Parameter manual															PDF

Company Profile
NINGBO YZHAO INTELLIGENT MACHINE Co., Ltd. is a national high-tech enterprise, dedicating to the Research & development and manufacturing of precise CNc lathe, machine center, digital & automatic production line, With the headquarter in Fenghua, Ningbo, China. Company has its own production base of 20000 square meters, has the capability of making 6000PCS/sets machines per year.Since the foundation in 2008, driven by ongoing scientific & technical innovation, now already have a strong technique team, with European specialist three people, high-medium technician more than thirty. For better serving the esteem customers, YZHAO fully take the advantages of advanced concept and technology from EU like Italy and GER., connecting with the domestic actual manufacturing situation, for years focus on the innovation, R&D and production on the CNc turning process & smart manufacturer, forming a dozen of high performance CNC lathe machines, like P series CNC lathe with flat bed in gang tools, X series CNC lathe with slant bed in gang tools, M series turret machines, S series turning & milling centers with double spindles, and forming a dozen of high performance machine centers, T series tapping centers, V series vertical machine centers, H series horizontal machine centers, VF series 5 axis machine centers, and especially for the customized automation having the obvious features of stability & compatibility, B series automation for shaft parts, H series gantry loader automation, G series six arm robots automation, among which, the in house built-in synchronous electric spindle (from Italy technology) plays a prominent part in the precise positioning of turning & milling center application, which with a number of independent invention patents, always in the leading position of CNCturning & smart manufacturing field, going through years of rich experiences in practical application, bring to the customers more and more feasible custom-made technique solutions and turnkey projects, gaining a very good reputation in the domestic and overseas market. With strong R&D team and strength, based on mutual benefit & win-win and customized service principle, bold investment in innovation, ongoing accumulation of experiences , YZHAO is committed to bring the biggest economic benefits to more and more enterprises.

FAQ

1. What is the payment Terms ?
A : T/T or L/C ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. what is your company mainly produces ?
A : Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC-Lathe; CNC-Milling Machine; CNC Cutting Machine, CNC Spare Parts, CNC Accessories, wier cutting machine,cnc machine center
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
5. What is the packaging of the machine?
A: The standard packaging of the machine is wooden pallet with plastic film.

---
