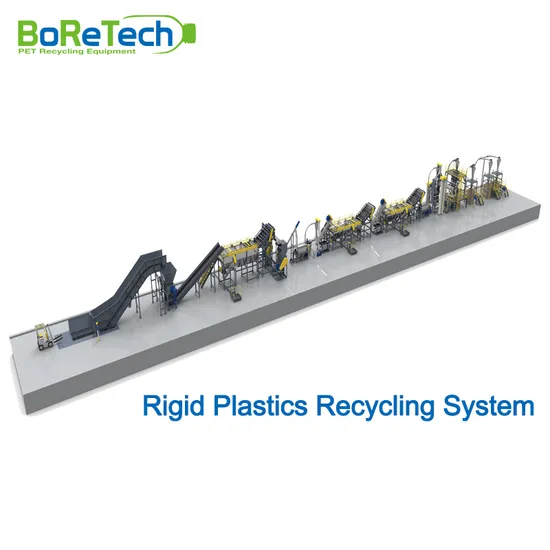

Rigid Plastics Recycling System

Product Description

Rigid Plastics Recycling System (PE,PP,LDPE,HDPE,PO,PS,EPS,ABS,PA,PC,PVC)
Boretech offers rigid waste plastic washing line is mainly used to recycle plastic products used in daily life. Through the classification, crushing, and washing, clean and reusable materials are obtained for downstream use for a hard plastics close loop. The raw materials that can be processed by the system include:
- - PE,PP,LDPE,HDPE,PO,PS,EPS,ABS,PA,PC,PVC
The commonly seen products made from the materials above are: hollow consumer goods, plastic toys, small plastic household goods, blue plastic vats, etc.
The capacity of the system: 1500 kg/h~3000 kg/h
Feature:
Boretech Rigid Plastic Recycling System has the ability to process a wide variety of plastic, with process design proven over the years. With hot chemical washing module, the washing line can achieve better and more consistent quality for end product.
Entire washing line can be equipped with DCS system and PLC control to minimize the usage of man power.
Washing line also designed with chemical water circulation system and online rinse water circulation system to reduce carbon footprint.
Washing line has a one button start and stop design makes much easier on operation and maintenance.
Parameters Sheet

Estimated Plant Parameters
Input Capacity (kg/h)	Required Area (m2)	Installed Power (kW)	Required Water (kg/h)	Required Steam (kg/h)	Required Compressed Air(m3/min)	Manpower
1.5	500	320	1.5	200	1	3-4
3.0	1000	500	1.5	200	1	3-5

Energy Consumption Chart- Average energy consumed per ton flake output
Capacity (kg/h)	Power Usage (kW·h)	Steam Usage (kg/h)	Chemical Usage (kg)	Water Usage (ton)
1500	220	150	3	1.5
3000	290	200	3	1.5

*Data above are based on laboratory calculations; material composition and management will affect the actual usage.
Recycling Process Flowchart
Feeding---Shredding---Metal Removal---Flotation Separation---Crushing---Drying---Friction Washing---Rinsing---Friction Washing---Rinsing---Drying---Zig-zag Separation--- Pneumatic conveying---Optical Sorting (optional)---Packing
BoReTech is an environmental equipment & plastic recycling enterprise which comes from Taiwan with 20 years experience for PET bottle,and other waste plastic recycle and 15 years experience for polyester staple fiber. Our plentiful manufacturing experience has become our prime backbone in waste plastic recycling plan, design and produce. Especially in PET bottle field, we provide not only whole recycling line or single machine but also operate manufacturing and sales in various kinds of recycled PET material and their upper and lower reaches practically. With those outstanding conditions, the equipment and project provided by us are verified by actual operation and the spirit of design is conform to operator's demand perfectly.

---
