Full Automatic Biscuit Wafer Making Machine Cream Filled Wafer Production Line

Product Description

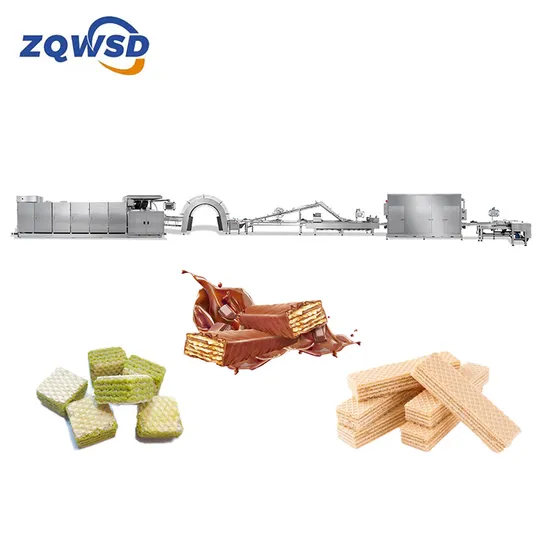

Wafer Biscuit Production Line

The whole line consists of:

NO.	Machine Name	Quantity (set)
1	Automatic Tunnel Baking Oven	1
2	Sheet Receiver	1
3	Cooling Machine	1
4	Sheet Picking machine	1
5	Cream Spreading machine	1
6	Cooling Cabinet	1
7	Laminating Machine	1
8	Cutting Machine	1
9	Wafer Batter Mixer	1
10	Cream mixer	1
11	Smashing machine	1
12	Electric Control Cupboard	1

Descriptions :
1. Automatic wafer baking oven:Equiped with Touch-screen and programmed by Siemens . PLC Software ,this unit is of electruc power or LPG,LNG to generate the heat energy to make wafer the wafer biscuit.
2. The equipment is easy to operate which with automatic temperature control ,lighting ,making mixer ,blowing ,sheet splicing to finish the baking process


Main Technical Parameter of Baking Oven:

No. of Heating Plates	27, 33, 45, 51, 57, 63, 69, 75 and so on
Baking Plates Size	470x325mm
Patterns of plates	2.5x2.5x0.9mm or 3.0x3.0x0.9mm
Output	up to 6~40 sheets/min
Thick of the biscuit	2.0mm~5.0mm
Inside Baking	Cleaning device
Dimension	6000x1620x2200mm

1. Material: Shell adopts 304 Stainless Steel, Siemens of Mitsubishi to control, SKF high temperature bearing, SEW Motor, Italy Buring Systerms.
2. Material of Baking Plates: Gray Cast Iron,Special Steel ,Copper.
3. Baking Plates temperature adjustable: Normal temperature to 200 °C
4. Inside Baking Cleaning device

Prefect After-sales
1. one year guarantee
2. our technical staff will install the machine fo the client when the machine arrive the clients' place
3. we will help the client solve the machine problem in the future time

TUNNEL WAFER MAKING MACHINE Function:
This is very important equipment in the wafer production line.
The wafer baking system uses Gas for heating of the baking plates.
The function of the baking oven is fully automatic from spreading batter on the plates through until baked wafer sheets come out of the oven.
Baking is even and produces good quality wafer sheets for next procedure.
In PLC there is PID controller which is used for controlling the temperature of the baking plates
automatically .
The collection of required signal of PID is supplied by infrared sensor .
The oven status display and the data reset are supplied by a touch screen, all motor have the
starting current protection and thermal overload protection.
Production Line Series:
Special Cream Spreading Machine
This machine is an important piece of machine in the wafer line, which determines the number of wafer sheets and cream (chocolate) layers that should be made. This machine has functions such as: applying cream (chocolate) layer on pre-cooled wafer sheets, draw evenly the cream (chocolate) layer and making the book of wafers sheets with different layer of cream (chocolate) and sheets, then applying slight pressure to hold the wafer/cream (chocolate) together. Number of cream layers and wafer layers can be adjusted as required to have count of 3/ 4/ 5 etc.

Packing&Delivery
Package:Packed in Film
20'GP/40'GP/40'HQ
Standard packing in container for seaworthy

Shipping:
By sea or by land.
Shipping way will depend on the destination and the weight of the goods.
FAQ
1. Ask: Are you a manufacture/factory?
Answer: Yes. We have more than 15 years of experience, we are quite professional in processing wafer production line.
2. Ask: How about the guarantee of your machine?
Answer:Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer.
3. Ask: We are not in China, how can you ship machines to us ?
Answer: Do not worry about shipment.We can help you to arrange shipment for you by Sea, by Train / Truck. If you have agent in China, welcome to your agent to come to us to pick up cargo if you like.
4. Ask: How should I do if meet some trouble while using?
Answer: We can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
5. Ask: How do you make your price?
Answer: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get competitive price and better quality.
6. Ask: How long it will take to make the machine?
Answer: We make delivery the machine within40-80days.
7.Ask: What information should l let you know if I want a precise quotation?
Answer: 1.Which product you are interested in?
2.What kind of efficiency are you looking for?
Zhaoqing City WanShunDa Foodstuff Machinery Manufacture Co., Ltd
Add: No,23 Dongsheng Road, District, Jindu Industrial Park, Gaoyao, Zhaoqing City, Guangdong, China

---
