Portable Hydraulic Portable Trailerc Truck Mounted Diesel Stationary Mounted Mini Concrete Conveying Pump Transfer Gear Piston Pump

Product Description

Hot Sales

Product Description
Introduction of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
Operators and relevant equipment managers should read the instruction manual carefully to master its structural principle, use and maintenance, and relevant knowledge of pumping concrete; when using and operating the concrete pump, they should strictly follow the instruction manual. Because the operator needs to have a process to fully grasp the mechanical properties, the instruction manual should be spared randomly. At the same time, special operating points should be formulated according to the instruction manual to effectively control some variable factors in the pumping technology, such as pump location, pipeline arrangement, etc.
zmwm21
Product Parameters
Parameters of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump

Maximum Theoretical Concrete Delivery Volume	25m³/h
Maximum Pumping Concrete Pressure	10MPa
Dispense Valve Form	S-pipe valve
Concrete Conveying Cylinder Bore*Stroke	Φ160*750mm
Outlet Diameter	Φ125mm
Rated Power	4120
Rated Speed	1280r/min
Hydraulic Circuit Form	open circuit
Pumping Xiyong Oil Pressure	18MPa
Stirring System Oil Pressure	8MPa
Hydraulic Tank Volume	250L
Maximum Conveying Vertical Distance	120m
Maximum Conveying Horizontal Distance	250m
Maximum Particles Allowed	30mm
Dimensions L*W/*H	3400*1100*1700mm
Total Mass	1500kg

Detailed Photos

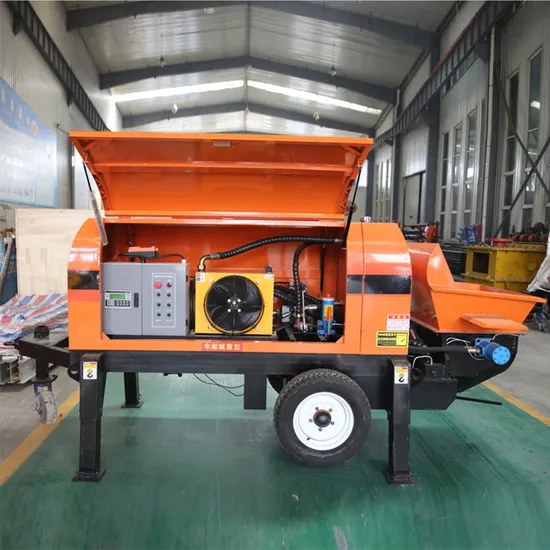

Photos of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
