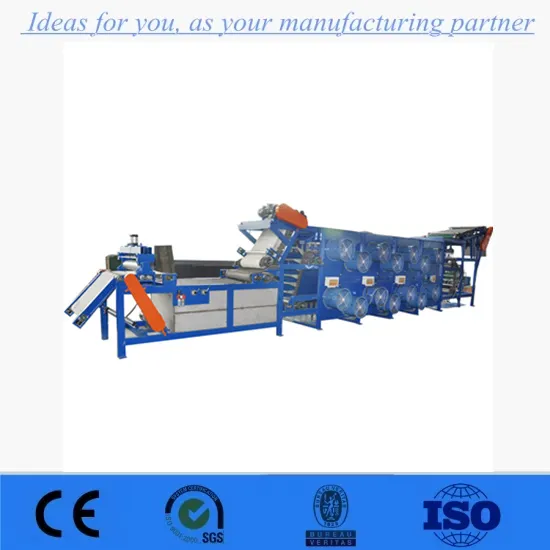

Rubber Batch-off Cooler/Batch-off Rubber Cooling System/Rubber Cooler Machine

Product Description

Product Description New Condition Batch Off Cooler Machine for Cooling Rubber Sheet
Application The machine is mainly used in rubber & plastic pruducts factory: natural rubber plasticating, raw rubber and compound mixing, as well as rubber warm-up and rubber sheeting.
Features:
1. The batch cooler is used for cooling, folding and depositing the rubber strip that comes from the open mills or twin screw extruder.2. Structure characteristics: There are two structures types: Overhead and floor-standing types.
3. The clients can choose high or low disposition according to the practical requirments.4. The high disposition batch-off line has hydraulic auto wig wag section, which can battle the rubber strip tidily, the strip tidy ratio (< =100mm);5. There are three working positions for auto entering and outputting of material tray.
6. Auto rubber collecting device; Auto cutter device; It has high automatization and can realize unattended operation.

Notes
1. The rubber sheet cooling machine can be designed as a floorid construction or an over-head construction. The sheet can be output on the first floor or on the second floor or both the first and the second floor.
2. The rubber sheet cooling machine is a conbined construction. Customer can add or reduce the middle support as required.
3. Customer can select the transverse strip cutter and the strip slitter according to the processing requirements.
Main product parameters

Version / parameter	XPG-600-700	XPG-800-900
Lab specification	(4-12)× 600-700mm	(4-12)× 800-900mm
Front take-away coneyor belt max linear velocity	400m/min	400m/min
Rubber strip hanging barwoving speed	0.117-202m/min	400m/min
Axial Fan	0.37kw 5760m 3 /h	0.37kw 5760m 3 /h
Swing range and frequancy	1.3m 10-16 twice/min	1.3m 10-16 twice/min
Rubber strip temperature after cooling	≤ Room temperature add 5 degree more	≤ Room temperature add 5 degree more
Speed -adjusting frequency motor of lifting swing edvice	XWD1.5-3-1/11	XWD7.5-7-1/43
Speed -adjusting frequency motor of rubber swing edvice	XWD1.5-3-1/87	XWD1.5-3-1/87
Rubber bar pitch	160 or 101.6	160 or 101.6
Max hanging height of rubber strip	1400mm	1400mm

Product Display

Characters:

1. Functions: Rubber slab conveying, separant applying, air cooling, drying, painting, cutting and wig-wag stacking
2. Rubber slabs are soaked with the separant so that the coating is even without pollution.
3. Blowers air cooling of rubber slabs so that the cooling effect is good.
4. The quantity of blowers can be chosen, 12pcs, 14pcs and 16 pcs has good cooling effect.
5. High efficiency, energy saving and saving occupied space.
6. Imported brand PLC control ensure good performance.
7. Interlock protection ensure low personal injury.
8. Our products are CE approval.
Packing and Shipping Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
Related Products About Us
Certificate
Qingdao Evertech Industry co.,ltd is a chinese manufacturer with establishment in 2007, and have 10 years experience in making various of rubber machines area, also pass the ISO 9001:2008 , SGS, CE certificates too.
Our factory major in rubber kneader/rubber mixing mill ; various of plate vulcanizing press ; 2 roll/3 roll/4 roll rubber calender; rubber batch off cooler; waste tire recycling line;reclaimed rubber production line;conveyor belt production line;rubber seals extruding &vulcanizing line etc...
Market: our machineries have exported to America, Mexico,India, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries and regions
Professional engineers and teams, then basing on customer requirements, we accept OEM*ODM machines, also oversea engineer service is available.

---
