Basic Info.
Model NO.

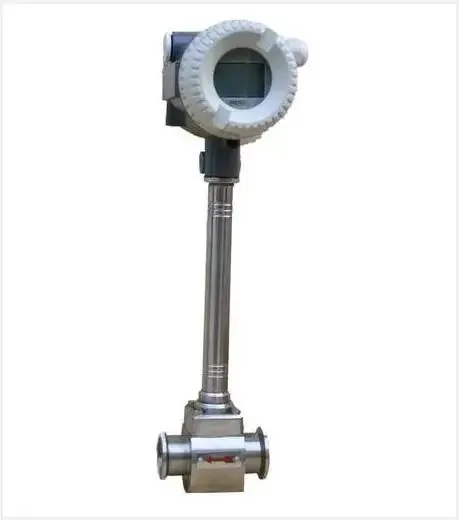

Hygienic vortex flowmeter
Accuracy
Level 1.0, Level 1.5
Main Application
Water, Nature Gas, Vapor
Application
Food Industry and Locations with High Hygiene Requ
Type
Variable Area Water Flowmeters
Measuring Media
Gas, Liquid, Vapor
Measuring Principle
Electrical Principles
Measurement Object
Gas, Liquid, Vapor
Certification
Utility Model Patent Certification
Caliber Specifications
DN25,32,50,80,100,100,150,200
Model
Hygienic Vortex Flowmeter
Output Signal
Pulse Output Signal or 4-20mA Current Signal
Power Supply
DC24V or Lithium Battery 3.6V
Measurement Accuracy
Level 1.0 Level 1.5
Customized Support
OEM, ODM
Measuring Medium
Gases, Liquids, Vapors
Transport Package
Shockproof Foam Board
Specification
The specific quantity requested by the buyer
Product Description
Measuring medium | Gases, liquids, vapors |
Caliber specifications | DN25,32,50,80,100,100,150,200 |
Flow measurement range | Normal measurement flow velocity range: Reynolds number 1.5×104~4×106; Gas 5~50m/s; Liquid 0.5~7m/s |
Measurement accuracy | Level 1.0 Level 1.5 |
The temperature of the medium to be measured | Normal temperature -25°C~100°C, high temperature -25°C~150°C -25°C~250°C |
Output signal | Pulse output signal or 4-20mA current signal |
The environment in which the instrument is used | Temperature: -25°C~+55°C |
Material | stainless steel |
Power supply | DC24v or lithium battery 3.6v |
1.Q:What's the shipping method?
A:By express way, such as Fedex, DHL, TNT and so on; by air; by sea. Shipping cost is decided by shipping ways& product actualweight &volume and your detailed address.
2.Q:What's the Payment method?
A: We support various payment way(T/T, Visa card, Western union, Moneygram, Secure payment-Escrow, etc.) T/T
3.Q:Can we print our own brand or logo on your products?
A: Yes, it is our pleasure to be one your OEM manufacturer in China to meet your OEM request
4.Q: Why do some goods have difference between website picture and practical items?
A: Because difference of light and browser, also different batches, material may be little difference. If any question, please
tell us before order and ask clearly.
>>
