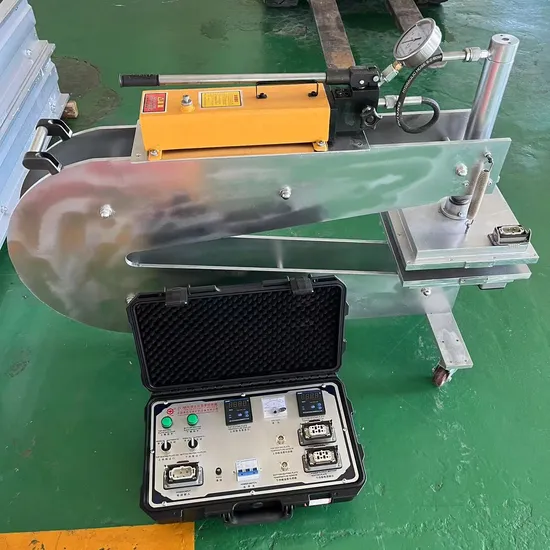

Conveyor Rubber Belt Hydraulic Spot Vulcanizing Repair Press

Product Description

Model	Temperature(ºC)	Power(kw)	Dimensions(L*W*H mm)	Weight(kg)	Pressure(Mpa)
YXL-200*200	145	1.1	1300*200*780	145	≤ 2.0
YXL-250*250	145	1.4	1300*250*780	149	≤ 2.0
YXL-300*300	145	1.6	1300*300*780	152	≤ 2.0
YXL-350*350	145	1.9	1300*350*780	1163	≤ 2.0

Conveyor belt vulcanizing press is the widest used conveyor belting equipment, its only need a few steps to confirm press model. The proper model selection for a sectional vulcanizier depends on determining dimensions A and B(see diagram above)
A- the platen length(A) is calculated by adding to the belt manufacturer's recommended splice length.
6 inches(150mm) for fabrics belt
14 inches(355mm) for steelcord belt
B- the platen width(B) which includes the bias angle, it determined by adding to the belt width
6 inches(150mm) for fabric belt
8 inched(200mm) for steelcord belt
To this figure multiply by:
1.07 for 22 degree bias angle
1.05 for 17 degree bias angle
Dimensions A and B represent the outside platen dimensions. Scan down the list below until you arrive at a platen size the corresponds with your figures.
If the size you require is not listed below our Sales department will be happy to recommend a suitable size, rectangular configurations and multiple platen arrangements are also available upon request.

Specifications are subject to change without notice.
Build-in cooling device on all vulcanizer.
Total weights include electrical control panel, cable sets are set-up templates for all models.
All models include electronic fluid pressure pump
Temperature adjustable between 0-199 Degree.C
Sectional vulcanizers are build on a 18 degree bias
Custom sizes, rectangular configurations and multiple platen arrangements available on request.

---
