150mm 200mm 250mm Width PVC Ceiling Panel Profile Extrusion/Extruder Machine/Equipment Production Line

Product Description

Product Description
1. PVC ceiling panel extrusion machines are specialized equipment used in the manufacturing process of PVC ceiling panels.
2. These machines are designed to extrude PVC (polyvinyl chloride) material into specific shapes and sizes to create ceiling panels.
3. The extrusion process involves heating the PVC material and pushing it through a die to form the desired shape of the ceiling panel.
4. PVC ceiling panel extrusion machines typically consist of a feeding system, an extruder, a die, a cooling system, and a cutting system.
5. The feeding system is responsible for feeding the PVC material into the extruder, where it is heated and melted.
6. The extruder is the main component of the machine that applies pressure to the melted PVC material and pushes it through the die.
7. The die is a specialized tool that shapes the PVC material as it passes through, giving it the desired profile of a ceiling panel.
8. The cooling system helps to cool down and solidify the PVC material after it has passed through the die, ensuring its shape is maintained.
9. Finally, the cutting system cuts the extruded PVC material into the desired lengths, forming individual ceiling panels.
10. PVC ceiling panel extrusion machines are used by manufacturers to produce PVC ceiling panels for various applications, such as residential, commercial, and industrial buildings.
This production line can make:
200mm, 250mm, 300mm and other customized dimensions.
Detailed Photos
Conical twin screw extruder
1. model choose SJSZ55/120, SJSZ65/132, SJSZ80/156 according to profile dimensions.
2. ABB/DELTA frequency inverter
3. Siemens Beide motor
4. Omron temperature control
5. High quality screw and gearbox
6. output 100kg-300kg per hour
PVC profile mold
including die head mold, calibrator, cooling tank.

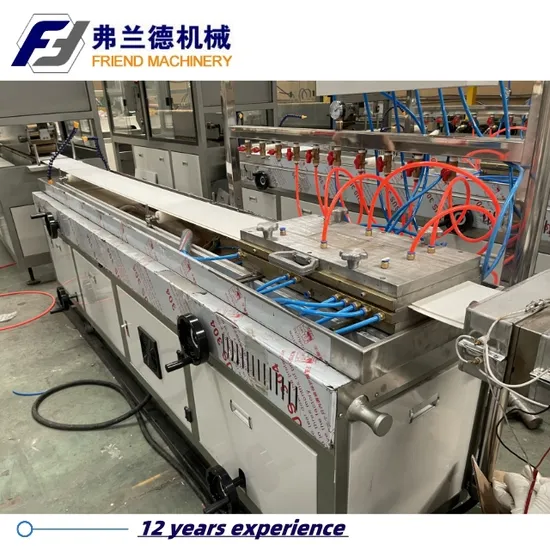

Vacuum calibration table
1. length can be 4000mm, 6000mm
2. including vacuum pump and water pump

Haul off machine
Double belt
rubber blocks are customized according to profile shape.
Hot stamping machine/laminating machine
this machine is used for printing or stamping decorative pattern on the ceiling panel surface, choose different models accoridng to the dimension or client's requests.
Final product

Product Parameters

1	SRL-Z series high speed mixing unit
2	screw loading machine
3	SJSZ51/105 55/110 65/132 model conical twin screw extruder
4	pvc ceiling panel mold(single or double cavity)
5	vacuum calibration table
6	hot stamping machine
7	haul off machine/traction
8	cutting machine
9	stacker
optional	crusher machine
optional	miller/pulverizer/grinding machine

Packaging & Shipping
Company Profile
FAQ
Q1: If I need more information, how to contact you?
Send me your demands, we will send back detailed machine specifications with working video.
Q2: How to buy your machine?
We send detailed machine quotation to you, if you are satisfied, we will make Proforma invoice for you, payment terms: 30% deposit, after machine testing good, 70% before shipment.
Q3: What about warrenty?
In some countries, we have agent and one year warrenty.
Q4: How can I believe your factory and company?
You are welcomed to ask authority to visit our factory and machine, we are real factory.
Q5: Do you have other service?
We can send engineer to your factory to install the machine and offer training. Each year, if we have machines technical improvements, we will inform clients.
Q6:Where is your factory located?
Our factory is in Zhangjiagang City which is nearby shanghai port, about 2 hours car driving, if you want to visit our factory, we can pick you up from airport or train station.

---
