IP66 LED Park Lamp 50W 60W Park Light for Outdoor Area Lighting

Product Description

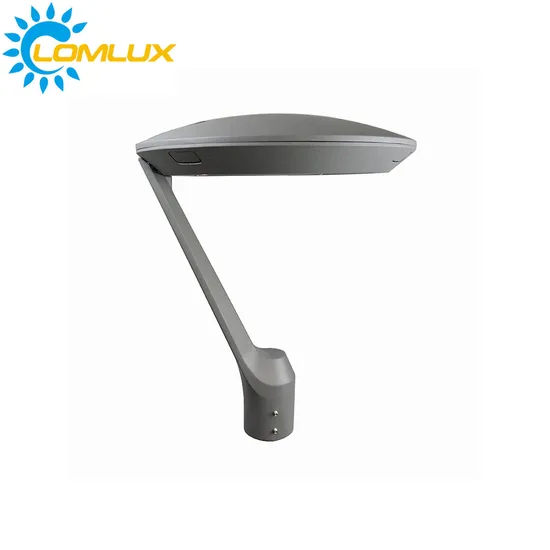

LM-GSL09A Round Rhape LED Garden Light 20-120W
Product Description
MAIN ADVANTAGES OF THE LED LUMINAIRE LM-GSL09LED garden light have a long useful life and low running costs. They are valued for their above-average durability,
high resistance to mechanical damage, environmental friendliness, very good visibility and aesthetic values.
The die-cast aluminum ensures effective heat dissipation, while maintaining high durability of the LED luminaire.
Power-coated body with a self-cleaning coating - standard colour RAL9007 - provides ideal protection against corrosion.
Street Lighting -Lomlux luminaires are available in a wide range of lens to suit different road classes.
High Power Factor >0.94 in full control range.
Protection built-in over voltage protection 10KV 20KV SPD as optional.
Savings the high efficiency LED luminaire (150lm/W) reduces electricity costs by over 50%.
Smart Lighting - 3/5/7Pin NEMA to support Photocell, 1-10V / PMW / DALI Dimming and smart city lighting systems.
Certs - ENEC+, ENEC, CB, SAA, CE, EMC, RoHS, IP66, IK09, LM79, TM21 etc.
5-7 Years warranty on the luminaire and a post warranty service.

Model	LM-GSL09A	LM-GSL09B	LM-GSL09C	LM-GSL09D	LM-GSL09E	LM-GSL09F
Size	D479*H544mm	D479*H589mm	D479*H544mm	D479*295mm	648*479*120mm	D479*H167mm
Power	20-120W
Luminous Flux	135-155lm/W
Holder	stand are 76mm, but support add 60mm inside holder
Material	Aluminum, LED Chip, Lens, Toughened Glass, Screw
LED Chip	3030SMD, 5050SMD, CREE
Optic Lens	20, 30, 60, 90, 120, Type I, II, III, IV, V options
Driver	Meanwell, Phlips, Sosen, Inventronics or specified brand
CCT	3000K, 4000K, 5000, 5700K, 6500K
IP Level	IP66
Certifications	ENEC CB SAA CE RoHS EMC IP66 IK09 etc.
Warranty	5-7 years

High Efficacy LED Source
Luminous source, providing excellent lumen
output, long-lasting stability and splendid
sight. The efficiency of 5050 chips
is more than 175 lm/w.High-End LED DriverHigh-end Meanwell / Sosen programmable LED driver, 4KV / 6KV surge protection, Optimal Stability, Excellent performance and lifespan. Variety Light DistributionLomlux provides different light distribution lens for the street light to achieve best lighting effect in different applications.
Follows the North American IESNA standard in providing the optional lens width ,Type I, Type II ,Type III. Surge Protection DeviceTUV approved 10KV 20KV surge protection device is the standard configuration in all of our LED Street Light.Remote Smart Control SystemLomlux provides a total solution for intelligence street lighting system. Communication via GPRS/CDMA/WCDMA wireless network or cable network & monitor center and proceeds with communication via ZIGBEE/PLC/ROLA. Main Products

LM-SL18	LM-GSL68	LM-GSL01A
LM-FL59	LM-GSL09A	LM-SL27

---
