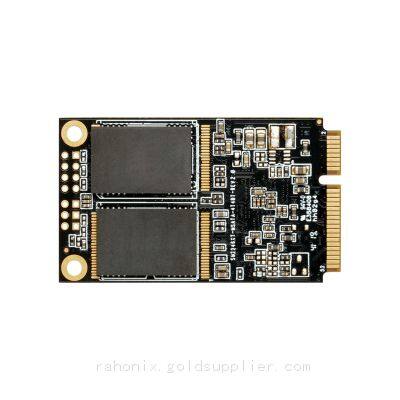

RMIT Series mSATA SSD

Product Details

Product Details

Product Description

Product Description
Features
Interface:SATA3.0(6Gb/s)
Low-Density Parity-Check (LDPC) Code
Global Wear Leveling
Flash bad-block management
Flash Translation Layer: Page Mapping
Support S.M.A.R.T.
Support TRIM
Power Loose Protection PLP
Specifications
Product Model
RMIT-XXX
Flash Type
MLC
Capacity
8GB~256GB
Sequential Read(MAX)
Up to 500MB/s
Sequential Write(MAX)
Up to 250MB/s
4K Random Read
21490 IOPS
4K Random Write
21750 IOPS
Operating Temperature
-20°C ~ 70°C, -40°C ~ 85°C
Storage Temperature
-55°C ~ +95°C
Humidity
5%-95% RH non-condensing
Shock
1500G/0.5ms
Vibration
80Hz~2000Hz/20G
Operating Voltage
DC 3.3V±5%
Power Consumption(MAX)
2.01W
Dimensions
L50.95mm*W30.0mm*H3.5mm ±0.15mm
MTBF
2 million hours

ApplicationsAerospace/Embedded/Surveillance/Vehicle/Automation/Retail/AIoT/Medical
