| US$3,000.00-50,000.00 | 1 Set (MOQ) |

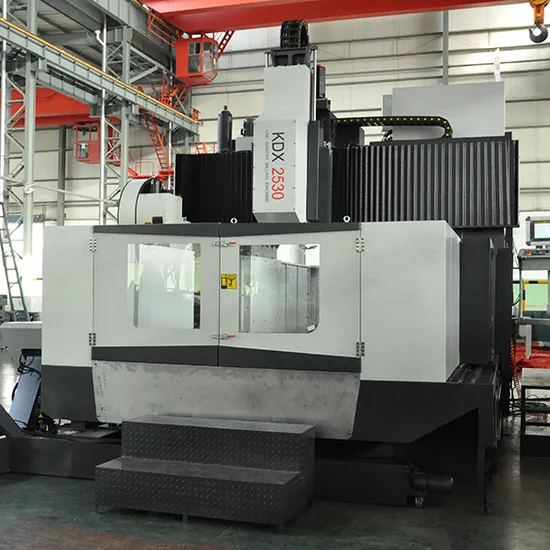

| ITEMS | KDX2530 | KDX2540 | KDX2550 |
Table | |||
Tablesize | 2300× 3000mm | 2300× 4000mm | 2300× 4000m |
Dragon Gate width | 2700mm | ||
Max. table load | 8T | 12T | 15T |
T-slot(width× number× space) | 11× 28× 200 N-mm-mm | ||
Capacity range | |||
Move around the table travel(X) | 3000mm | 4000mm | 5000mm |
Move around spindle slide travel(Y) | 2500mm | ||
Spindle travel up and down(Z) | 1000mm | ||
Spindle nose to table surface | 150-1150mm | ||
Spindle | |||
Taper bore of spindle | BT50/Φ 190 | ||
Spindle speed | 4000 rpm | ||
Main motor power | 18.5 /22KW | ||
Feel | |||
X, Y, Z motor torque | 30, 22, 30Nm | 60, 30, 30Nm | 60, 30, 30Nm |
Cutting feed speed range | 10-5000mm/min | ||
Fast moving speed | |||
X axis | 12 m/min | ||
Y axis | 12 m/min | ||
Z axis | 12 m/min | ||
Repeatability(JB6086-92) | ± 0.003mm | ||
X axis | ≤ 0.025mm | ||
Y axis | ≤ 0.025mm | ||
Z axis | ≤ 0.025mm | ||
Other | |||
Net weight | 45T | 50T | 55T |
CNC System | FANUC | ||
