Single Wall Corrugated Pipe Extruder for PP/PE

Product Description

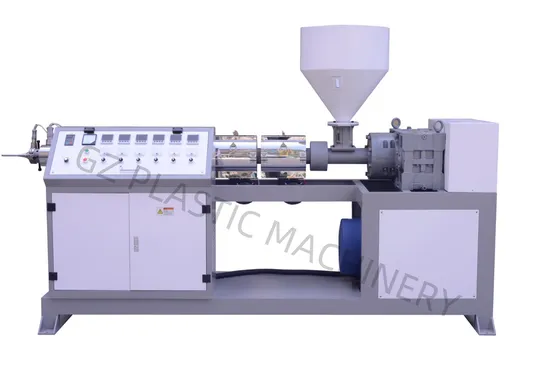

SJ series Single Screw Extruder has adopted frequency control and can effectively reduce power consumption of transmission process via direct connection ways of motor and reduction gearbox. The screw uses separated type with mixer head way that may strengthen the shear action of material, improve plasticizing effect. This extruder is with good stability and lower power consumption.
Main Techincal Parameters:

Model	Screw Diameter	Production diameter	Power	Center Height	Capacity
SJ-30	Φ30 mm	28:1	4 KW	1000 mm	15-20 kg/h
SJ-45	Φ45 mm	28:1	7.5KW	1000 mm	20-35 kg/h
SJ-50	Φ50 mm	28:1	11KW	1000 mm	30-45 kg/h
SJ-65	Φ65 mm	30:1	15-22KW	1000 mm	45-65 kg/h
SJ-80	Φ80 mm	30:1	30-37KW	1000 mm	60-90 kg/h
SJ-90	Φ90 mm	30:1	37-55KW	1200 mm	70-150 kg/h

Extrusion Die
Material : 45# steel
Filter :Nitriding Treatment Moulds Block
Materials of moulds block:40Cr
The moulds are made by CNC system, it is high precison and long service life.
It could be designed into one hole or two hole according customer request.
Machinery introduction:
All electrical components are imported famous brands, like German "SIEMENS", France "SCHNEIDER", Japan"ORMON"
Single wall corrugated pipe has features of high temperature resistance, anti-erosion, anti-abrasion and high strength.
This pipe widely be used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine.
1.High precise temperature control. Configurable alarm strategy.
2.All of the production data can be displayed electrical panel.
3.Very easy operation.
4.Running stability
Pipe Application:
1. Electrical wire conduit pipe
2. Automobile wire harness tube
3. Shisha hookah pipe
4. Washing machine drain hose
5. Air conditioner outlet pipe
6. Medical breathing tube
7. Extension tube
The function and working principle of plastic extruder machine
Extruder is a common equipment for industrial production, widely used in plastic processing, fiber manufacturing, food processing and other fields. The main function of the extruder is to make plastic products with strong plasticity and stable performance through multiple steps such as high-temperature melting, extrusion and cooling molding.
The working principle of the extruder is that the plastic particles or sheets are heated to the melting point and then fed into the feed port of the machine, and the cylinder is extruded by a high-speed rotating screw, and the pressure control and other parameters are added at the same time. Then through the design and adjustment of the die head, the plastic cylinder is extruded into plastic products of various shapes and sizes.
Workshop

Packaging & Shipping
Company Profile
GAOZHONG PLASTIC MACHINERY Co., ltd was established in 2011, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
the company mainly produces: plastic corrugated pipe production line, Plastic Wire ( steel wire ) Winding Pipe Production Line , PP/PE/PVC pipe production line,plastic extruder, plastic auxiliary machinery, traction machine, Winding machine, plastic pipe mold and other plastics Machinery.At present,the products are sold all over the country and exported to South Korea ,Jordan,Athelbia,France,Vietnam,Singapore,India,Afghanistan,Egypt and other foreign markets.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company.
Our service:
1.Ability to provide the customized plastic extrusion solutions;
2.Complete sales system covering the pre-sales, sales and after service jobs;
3.Commissioning & installation service in customer plant
4.We can send you the video of the running machine. You are welcome to come to visit our factory,and see the machine running.
5.We can design the machines according your requirements(material,power,color),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
FAQ Q: Are you trading company or manufacturer ?A: We are factory. Q: How long is your delivery time?A: Generally it is 20-45 days after receiving the deposit.The special time need discussing the new delivery date . Q: How do you make the quotation for clients?
A:Please offer the following information, so we can give you price and our advice as manufacturer:
1. Type of pipe you want to produce.
2. Pipe diameters.
3. Raw material and its types
If you can send us photos of your samples, it would be highly appreciated. Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
Questions for Buyers
Pls think about the following questions and then send your messeage to my email. And we will offer you our quotation ASAP.
1.The capacity(kgs per hour).
2.The material of this pipe.
3.Please tell me the voltage in your factory
CONTACT US:
If you need to know more information about our company or our product ,welcome to contact us and visit our factory!
Our company hope to cooperate with you to create a better future! ! !
GAOZHONG PLASTIC MACHINERY-Lily Chen
Mobile:+8618257946416

---
