4G LTE Internet Router CPE 2.4G Wireless WiFi Build in MIMO Antenna for Outdoor Industry Use

Product Description

4G lte internet router CPE 2.4G wireless WIFI build in MIMO antenna for outdoor industry use
Overview

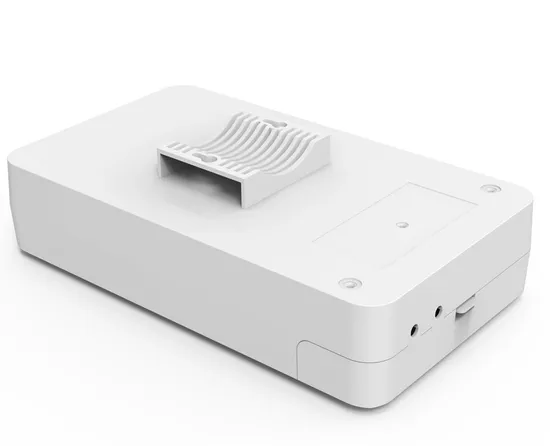

HOR101 Cellular outdoor router is a wireless communication product developed based on gsm wcdma 3G/4G LTE network requirements. Supports 2G/3G/4G LTE global frequency bands. Supports 4G LTE CAT 4 Internet access. Catch long distance signal from tower then transfer to WIFI or LAN port , to transmit to your terminal such as IP camera, mobile phone ,tablet ,computer.

High light
4G LTE data transmission;• 2*2 4G/WIFI MIMO antenna;• 4G LTE /5G antenna gain: >10DBi• Integrate 3G/4G LTE,WIFI feature; POE power supply (+5V~+48V), Supported POE output via LAN 2 port(Optional);
• 2.4G WIFI
• Waterproof,dustproof,lightning protection. Protection level, IP65
Specification

3G/4G Frequency bands

Version E. LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32(Optional) LTE-TDD: B38/B40/B41/B42(Optional) /B43(Optional) WCDMA: B1/B3/B5/B8 Verison A. LTE-FDD: B2/B4/B5/B7/B12/B13/B14B25/B26/B29/B30/B66/B71 LTE-TDD: B41/B48 Version LA. LTE-FDD: B2/B4/B5/B7/B8/B28/B66 LTE-TDD: B42(Optional) /B43(Optional) WCDMA: B2/B4/B5/B8

CPU	MTK7628
MEMORY	FLASH 16MByte, DDR2 128MByte
Hardware interface	2* LAN gigabit Ethernet ports.
Antennas	2*2 MIMO,2 * SMA male antenna connectors with 50 Ω impedance.
WLAN	IEEE 802.11b/g/n/ac. Supports 20MHz,40MHz,80MHz in 5GHz band, and 20MHz,40MHz bandwidth in 2.4GHz band Max bandwidth 300Mbps in 2.4GHz band. Max bandwidth 867Mbps in 5GHz band.
Protocol	Supports PPTP, L2TP, IPSEC VPN,TCP,UDP,DHCP,HTTP,DDNS,TR-069,HTTPS,SSHetcprotocols.
Bridge	Supports 4G/5G bridge mode feature.
standard power	POE power supply input.DC24V/1A
Protocol	Operating Temperature. -20 ºC ~+65ºC, Storage Temperature. -30 ºC ~+70ºC
Bridge	Supports 4G/5G bridge mode feature.
Wireless mode	Access Point (AP), Client
VPN Feature	Supports OpenVPN,IPSEC VPN,PPTP, L2TPetcVPN feature.

Product details
Application
Application site
production line

Company profile
Shen Zhen Ex-link Technology Founded in 2011, as the leading provider of 5G/4G LTE /NBIOT/WIFI industrial router and systems solutions, we have experienced technical teams and professional implementation of industry solutions. With first-class team and technology accumulation, the company independently developed 4G router,4G CPE,4G ODU,4G DTU ,tracker, traveling recorder, DVR, streaming media mirror and other high-quality terminal products.

FAQ
1. Are you trading company or factory ?We are factory with our own hardware and software engineer , due to direct sell, we provideour customer cheaper factory price . and quick engineer service after sell .2. Do you provide customer's Logo and package design?Yes, we can provide customized logo and design if order quantity reach 1000pcs.3.Do you accept PCBA orders only?Of course, we can provide PCBA in a short time with good quality.4.Do you provide firmware support?Sure , unlike other companies which are buying solutions from design company, we have our own firmware development team to supportyou in 100%.5.How does your factory do regarding quality control? We promise to use all new material to produce. Production is strictly monitored, and 100% QC inspection is done before shipment.

---
