RF Coaxial Cable, 1/2, 1/2flex, 1/4, 3/8, 7/8 RF Feeder Cable for Communication

Product Description

Product Description

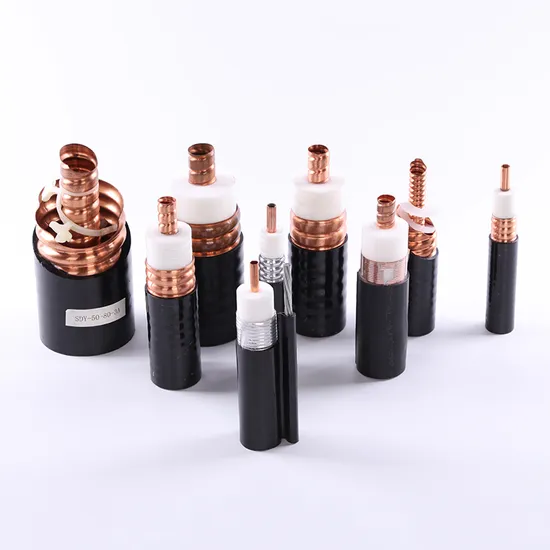

Smooth Copper Tube RF Coaxial Cable , 1/2 Inches RF Feeder Cable For Communication
PE for outer jacket.Inner conductor is copper clad aluminum, smooth copper tube or helix copper tube is also avaliable for inner conductor as different options. insulation is high physically foaming PE. Outer conductor is corrugated copper tape.
Applications:
metro stations
wireless In-building solutions
tunnels
Wireless mobile communication
Microwave telecommunication
Military use
Specification:

construction	Testing item		Unit	Standard
	Inner conductor	material	-	smooth copper tube
		diameter	mm	4.80
	Outer conductor	material	-	corrugated copper tape
		diameter	mm	13.80
	jacket	PE or halogan free	mm	15.80
mechanical performance	single bending radius		mm	70
	repeated bending radius		mm	125
electrical performance	inner conductor resistance		Ω/km	≤1.48
	outer conductor resistance			≤1.0
	Capacitance		pF/M	76
	Characteristic impedance		Ω	50+/-1
	Velocity		%	88
	Attenuation 20ºC(max)	100MHZ	dB/100m	2.17
		200MHZ		3.10
		300 MHZ		3.83
		450 MHZ		4.75
		800 MHZ		6.46
		900 MHZ		6.87
		1000 MHZ		7.28
		1500 MHZ		9.09
		1800 MHZ		10.10
		2000 MHZ		10.70
		2500 MHZ		12.10
		3000 MHZ		13.40
	VSWR	0.01GHz-3GHz	-	1.20
		820MHZ-960MHz		1.0
		1.7GHz-1.9GHz
		2.1GHz-2.2GHz

Company ProfileCompetitive Advantage:
Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
Over 18 years of experience on coaxial cable, we have been in business partnership with multi-national cable companies since 1994.
Our AdvantagesHot Product
FAQ
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and/or design on goods are available.
Q: May I visit your factory?
A: Sure, welcome any time with prior notice.
Q: Can your company accept customize?
A: Yes, we can produce based on customization requirements practicable for us.
Q: What's your delivery time?
A: Products with stock available will usually be ready for dispatch within one working day since PO confirmed and deposit received; Products to be manufactured takes several days to several months depending the item types and quantity.
Q: How do you solve after sale service?
A: Any after-sales inquiry will be treated within 24 hours once received written notice from client via email, express mail, etc. Your request will meet our active response to furnish satisfying solution for you.
Q: Can you send a sample for us to develop?
A: We can provide samples of mature technical processing line; while special types shall be treated with technical appraisal before confirmation of sample availability. And samples can be provided free of charge or at cost price depending on specific sample type. Fees for transportation of the sample shall be assumed by client.

---
