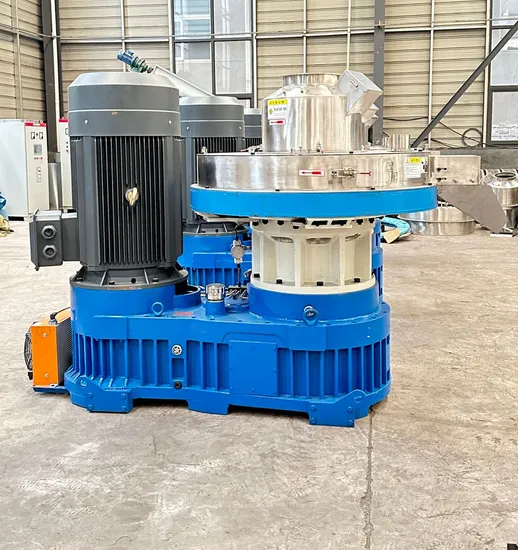

Biological Particle Machine/Vertical Ring Mold Granulator Pelletizer/Reducer Integrated Vertical Ring Mold Granulator

Product Description

JN560 JN700 JN850 hot selling biomass wood pellet production line

1-Our company develops and produces wood pellet machine, also known as high-efficiency pellet machine. It absorbs the advantages of ring mold and flat mold, combines the characteristics of wood bran energy raw materials, and absorbs the essence of domestic and foreign pellet machine.

2-The mold is refined from stainless steel and its service life is several times that of ordinary products. It is a double-layer mold and can be used twice. The lubricating grease of the transmission structure is automatically lubricated and lubricated by the circulating pump to protect the bearing.
3-It has the characteristics of low energy consumption, high efficiency and durability. The whole set of accessories and components are produced by the company to avoid quality control problems caused by outsourced manufacturers.

Model	Power (kw)	Capacity(kgs/h)	Weight(kgs)	Dimension(mm)
JN560	90+1.5+0.37+1.5	1000-1200	4200	2300x1250x1950
JN560P	110+1.5+0.37+1.5	1200-1500	4500	2300x1250x1950
JN560X	132+1.5+0.37+1.5	1500-2000	5000	2300x1250x1950
JN700	160+1.5+0.37+1.5	1500-2000	6200	2800x1400x2100
JN850	220+3+0.37(0.55)+2.2	2000-3000	14500	3200x1630x2300

How to make pellet 1. Use Wood Chipper, Wood Crusher to make wood logs, chips (or other materials) smaller.
2. Use Dryer (rotary drum dryer / Air-flow dryer) or add water to the sawdust(or other materials) till its moisture content between 8-15%, which is the best moisture content for pelletizing.
3. Put the sawdust into the pellet machine gradually. Large scale pellet production need a screw feeder to make sure stable feeding of raw material.
4. After pelletized, the pellets are of high temperature that is not suitable for direct packing. So they should be cooled by pellet cooler.
Then, pellets go through a vibrating sieve, where good pellets will be left, while broken ones or powder will be collected for reproduction.
5. After all the above procedures, pellets can be packed with a pellet packing machine.
Scope Of Use
Ring mold granule machine, widely used in large, medium and small aquaculture, food feed processing plants, livestock farms, poultry farms, individual farmers and small and medium-sized farms, farmers or large, medium and small feed processing plants. Ring mold particle machine is also a kind of particle equipment commonly used in the biomass energy industry is the biomass raw materials such as: branches, stalks, crushed into rod particles, fuel molding equipment to replace coal.
Product use
Vertical ring die granulator is a machine for developing dry powder into required particles. According to its use, it can be divided into feed granule machine, wood pellet machine, straw scale pellet machine, rice husk pellet machine, sawdust pellet machine, fuel pellet machine, biomass pellet machine, fertilizer pellet machine, organic fertilizer pellet machine and so on.
Product Mix 1: The mold is vertical and double layered, with dual use of upper and lower layers, improving utilization, reducing costs, and increasing efficiency. 2: The pressure wheel rotates, the material is centrifuged, and the surrounding material is evenly distributed. 3: Efficient and energy-saving, automatic timed oil lubrication, ensuring sufficient lubrication of bearings and safer and more reliable operation. 4: High pressure filtration, clean and smooth independent frequency conversion device, ensuring the yield of particles.
FAQ
Q: What materials can be used for particles?
A: Sawdust, EFB, rice husk, rice straw, agricultural waste, grass, and other different types of biomass materials
Q: Which moisture content is suitable for granulation?
A: The most suitable moisture content is 10-15%.
Q: What size can be fed into the granulator?
A: Usually, it is necessary to have a diameter smaller than the output particle diameter.
Q: What is the warranty period for your machine?
A: 1 year
Q: What are the vulnerable parts of the granulator?
A: Roll shell and ring mold
Q: What is the density of the output particles
A: The particle density is 1.0-1.4g/cm3

---
