E-Waste Washing Recycling Machine Plant Line

US$30,000.00-400,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PTC1000
Material Processed
ABS, PS
Plastic Type
ABS
Screw
Double-Screw
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008, CE
Material
SUS304
Motor
Siemens
Electrical Appliance
Siemens
Delivery Time
30-60 Days
National Patents
20+
Working Experience
15+ Years
Sample Project
Available
Exporting Countries
Worldwide
Advantages
Less Energy Consumption, Smart Control
Final Products Water Content
Less Than 2%
Supply Voltage
3*380V+N+PE; Customized
Frequency
50Hz; Customized
Transport Package
Standard Export Package
Specification
500kghr, 1000kghr, 2000kghr, 3000kghr
Trademark
POLYTEC
Origin
China
HS Code
84778000
Production Capacity
100 Sets/Year

Product Description

Product Description

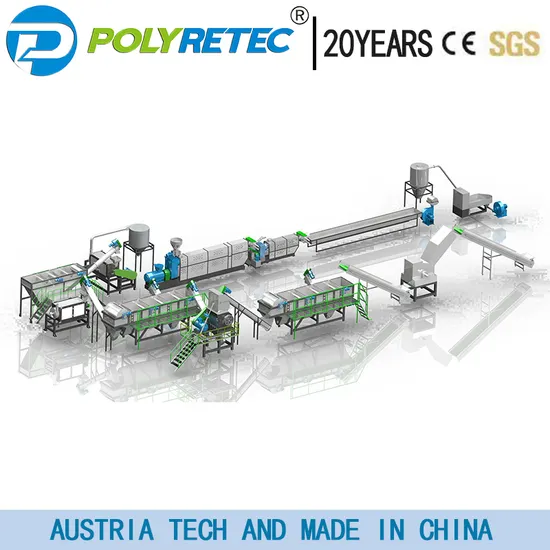

Name:ABS/PS Shell Crushing Washing Production Line ,E waste recycling machine line
Raw materials: all kinds of TV shell, computer shell, refrigerator shell, etc
01 - Features


ABS PS household appliance shell crushing washing recycling production line is mainly used for processing various
kinds of television shells, computer shells, refrigerator shells, washing machine shells, air conditioner shells, car battery shells, electric vehicle battery shells and other waste large-sized hollow household appliance shells, by dismantling and crushing, saltwater flotation, dehydration and drying, rubber bounce separation and electrostatic separation, to separate impurities and metal in the materials and obtain high-purity engineering raw materials for re-use. Firstly, dismantle the waste hollow-type ABS PS appliance shells and break them into small pieces, then remove surface stains by high-speed friction scrubbing, then wash out some impurities by saltwater washing, then clean with clean water, then dry by centrifugal dehydration and hot wind drying, then use bounce separator and electrostatic separator, so to separate out metal, rubber and impurities and finally to obtain various kinds of high-purity engineering raw materials. The obtained clean household appliance shell flakes can be made into pellets for re-use.





02 - Scope of Application

ABS HIPS Television shell
ABS washing machine shell
Refrigerator shell
Air conditioner shell
PS car, electric car battery shell




03 - Technical Characteristics


The crushing system adopts a wear-resistant design to ensure long time continuous, and stable system running
The high-speed centrifugal cleaning system applies the corresponding blade striking force to different materials at the most suitable rotation speed, and the cleaning effect is good
The dry electrostatic separator mainly uses the high-voltage electric field separation principle to separate materials based on different charge levels of other materials in the same unit voltage electric field. There is no waste gas/water / solid waste generation, and environmentally friendly.
The specially designed air-flow winnowing system can effectively separate light materials such as sponges and dust in dismantling and sorting of household appliances and improve the purity and recycling rate of various materials
The solid magnetic drum-type magnetic separation system efficiently separates the iron and steel in the material and controls the purity of the iron and steel material. By its unique working method, it is not easy to absorb impurities when separating the iron and steel
The entire line is automatically controlled, with associated operation between the units of the system and high automation degree
Circulating water is used to ensure the cleaning effect while reducing water consumption
After theoretical calculations and multiple actual measurements, the details of the mechanical operation of the crushing, washing, and drying parts are adjusted to avoid material loss due to excessive processing
The production line can be equipped with a sewage and wastewater treatment system to recycle and reuse the sewage through sedimentation and filtration and meet environmental protection discharge standards and solve your worries
This system needs to be equipped with an online brine filtration and reuse device to realize the recycling of brine and ensure separation purity.
According to the experience of the PS/ABS washing and recycling line operated by our company in Europe, after separating through the brine, the purity of the material is about 90-92%.


04 - Process

The recyclable resources in home appliances are not just plastic. Therefore, after crushing waste home appliances, firstly sort out various metal resources and then sort the crushed plastic materials, and other waste plastic products to be sorted should also be crushed condition. Even if it is not, we also have a plastic crusher to crush plastic products for easy sorting. Therefore, waste plastic sorting can also be said as the removal of impurities in plastic crushed materials. Sorting process reference: mixed plastic crushing material → feeder (uniform convey material) → saltwater floating tank (remove heavy materials such as stones and metals, leave various plastic and other light floating materials lighter than saltwater) → plastic crusher (crush the mixed plastic) → clean water washing tank (clean the plastic, and classify the plastic according to the materials) → dehydration machine(remove water) → dryer (dry cloth) → silicone separation machine (remove rubber, silica gel and other impurities, so to obtain relatively clean plastic, according to the different materials, the purity is 99%+).
