u type butterfly valve

Product Description

Product Description

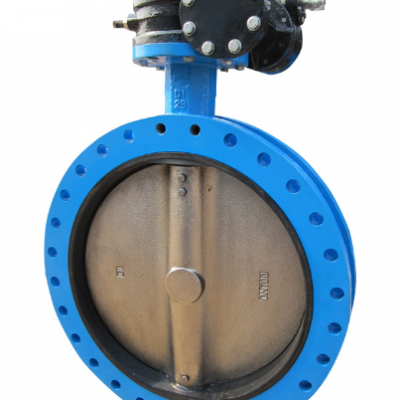

u type butterfly valve

Driving Mode	Lever, Handle, Gear Operator, Pneumatic Actuator
Valve Body	Casting
Specification	customizable
Body Material	Cast Iron/Ductile Iron/Wcb/CF8m/CF8/Al-Bronze

Product Name	u type butterfly valve
Working Temperature	Normal Temperature (-40°C
Work Pressure	Mid-Pressure (2.5mpa
Material of Seal Surface	Soft Sealed
Transport Package	According to Customer′s Requirement
Specification	customizable
Stem	Carbon Steel or Ductile Iron or Stainless Steel
Shaft	Stainless Steel Monel K500
Material of Seal Surface	Soft Sealed
Application	Industrial Usage, Water Industrial Usage, Household Usage

China u type butterfly valve is a type of butterfly valve that is designed to handle particularly thick or viscous fluids, such as slurries, powders, and granules. It gets its name from the shape of its disc, which is U-shaped and has a larger opening area compared to other types of butterfly valves.
The U-type butterfly valve works by rotating the U-shaped disc within the valve body to control the flow of fluid through the pipeline. When the disc is rotated perpendicular to the flow direction, it blocks the flow completely. When it is rotated parallel to the flow direction, the valve is fully open and allows the fluid to flow freely.
The larger opening area of the U-type disc allows for better flow control and reduces the risk of clogging in the valve. The valve is also designed with a tight seal to prevent leakage and ensure that the fluid is flowing in the intended direction.
U-type butterfly valves are commonly used in applications where flow control of thick or viscous fluids is required, such as in the chemical, food and beverage, and pharmaceutical industries. They can be made of a variety of materials, including stainless steel, carbon steel, and plastics, depending on the specific requirements of the application.
We also have other related products：china butterfly valve,4 inch victaulic butterfly valve,16 inch butterfly valve

---
