Hot Sale GSK Controller High Speed Chinese Vertical Milling Machine Center Vmc400e

Product Description

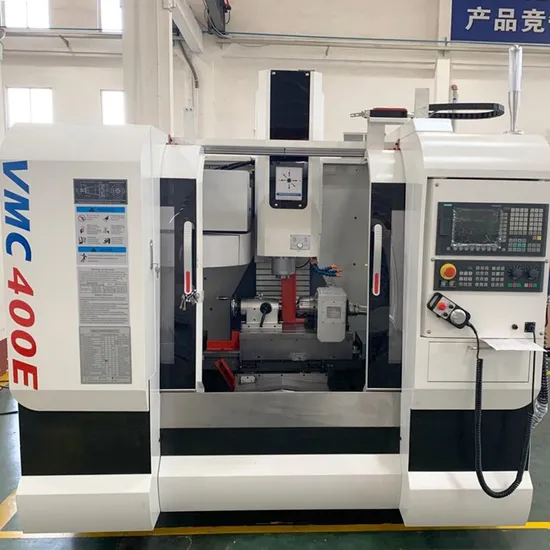

Hot Sale GSK Controller High Speed Chinese Vertical Milling Machine Center VMC400E

Items	Unit	VMC400E
Table size	mm	600*350
T slot (No. x distance x width)	no	3x120x14
Max. load of worktable	kg	100
X/Y/Z-axis travel	mm	400/350/400
Spindle nose to table surface	mm	60-460
Spindle taper	-	BT40
Speed Range	rpm	40-8000
Spindle motor power	kw	5.5 servo
Cuttiing feed X/Y/Z	mm / min	2-10000
Rapid feed X/Y/Z	m / min	30/30/24
Tool magazine capacity	pcs	16
Tool magazine type	-	Umbrella type
Max. tool diameter (full)	mm	8
Max. tool length	mm	80/130
Max. tool weight	kg	300
Tool changing time (tip to tip)	s	3/7
Positioning accuracy	mm	±0.005/300JIS
Repeat positioning accuracy	mm	±0.003 JIS
Overall dimensions(LxWxH)	mm	3020*1950*2380
Packing size	mm	2390*2250*2260
N.W./G.W.	kg	2400/2600

Standard accessories:
GSK CNC controller
Taiwan spindle BT40-120-10000RPM (highest speed 8000rpm)
X,Y,Z Taiwan linear guide ways
16 Tools umbrella type tool magazine
Taiwan high precision ball screws
spindle blowing chip removal system
spindle front seal
Germany FAG bearings
Auto centralized lubrication system
two water cooling,
one air cooling,
electrical hand wheel (MPG),
working lamp
alarm light,
rigid tapping
air gun
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.

---
