AISI 304 316 1*19 Stainless Steel Wire Rope

Product Description

Company information:
Founded in 1997, we now are a large-scale production plant which specialized in the production of stainless steel wire, stainless steel wire rope, and PVC/Nylon/PE coated stainless steel wire rope product.
The company serves both domestic and international market. Our products are of high quality. We are the official supplier for China high speed train project. Moreover our product is widely exported to worldwide market such as US, Australian, Europe, and Asian market.

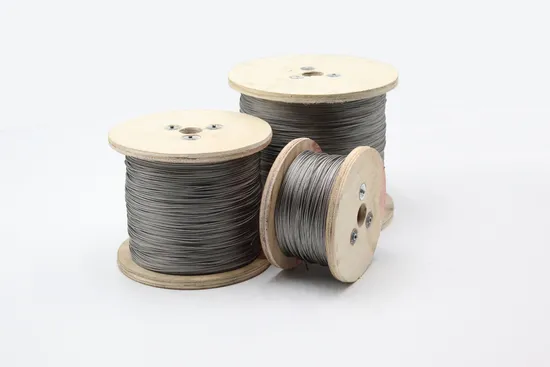

316 1*19 Stainelss Steel Wire Rope
Tianli Stainless Steel offers a complete line of stainless steel wire rope cable for marine, industrial and architectural applications.
All of our stainless steel wire cable is made from 316 (1.4401 A4) and 304 (1.4301 A2) stainless steel.
Our wire rope product line also includes both Black Nylon Coated Wire & White Nylon Coated Wire & Clear Nylon Coated Wire.
We also offer a complete line of Wire Rope Accessories including Thimbles, Turnbuckles, Clips, Sleeves, Swage Turnbuckles & Terminals.
Our stainless steel wire rope cable will meet and exceed your expectations.
Our stainless steel wire rope cable can be supplied on a spool or cut to your specific request.
common wire rope cable type we supply:
1x7 1x19 1x37
7x7 7x19 7x37
6x7+FC/PP 6x19+FC/PP/WSC/IWS/IWRC 6x19S
6X36WS+IWRC/FC 6X37+FC/IWRC
1x19 Stainless Steel Wire Rope Specification:

Structure	Rope diameter mm	Approximate Weight kg/1000m	Min. Breaking Strength N	Min. Breaking Strength kg
1x19	0.6	1.8	343	35
	0.7	2.45	470.4	48
	0.8	3.2	617.4	63
	0.9	4.05	774.2	79
	1	5	950.6	97
	1.2	7.2	1274	130
	1.5	11.25	2254	230
	1.6	12.8	2597	265
	1.8	16.2	3200	327
	2	20	3822	390
	2.4	28.8	4800	490
	2.5	31.25	5586	570
	3	45	8000	816
	3.5	61.25	9310	950
	4	80	12740	1300
	5	125	18900	1929
	6	180	26000	2653
	8	320	45000	4592
	10	500	72000	7347
	12	720	101000	10306
other size and structure available

inch mm convert table ( 1 ft =12 inch ; 1 inch = 25.4 mm ) :

inch				mm		inch				mm		inch				mm		inch				mm
1/2		0.5		12.7		3/32		0.09375		2.381		3/64		0.046875		1.191		35/64		0.546875		13.891
1/4		0.25		6.35		5/32		0.15625		3.969		5/64		0.078125		1.984		37/64		0.578125		14.684
3/4		0.75		19.05		7/32		0.21875		5.556		7/64		0.109375		2.778		39/64		0.609375		15.478
1/8		0.125		3.175		9/32		0.28125		7.144		9/64		0.140625		3.572		41/64		0.640625		16.272
3/8		0.375		9.525		11/32		0.34375		8.731		11/64		0.171875		4.366		43/64		0.671875		17.066
5/8		0.625		15.875		13/32		0.40625		10.319		13/64		0.203125		5.159		45/64		0.703125		17.859
7/8		0.875		22.225		15/32		0.46875		11.906		15/64		0.234375		5.953		47/64		0.734375		18.653
1/16		0.0625		1.588		17/32		0.53125		13.494		17/64		0.265625		6.747		49/64		0.765625		19.447
3/16		0.1875		4.763		19/32		0.59375		15.081		19/64		0.296875		7.541		51/64		0.796875		20.241
5/16		0.3125		7.938		21/32		0.65625		16.669		21/64		0.328125		8.334		53/64		0.828125		21.034
7/16		0.4375		11.113		23/32		0.71875		18.256		23/64		0.359375		9.128		55/64		0.859375		21.828
9/16		0.5625		14.288		25/32		0.78125		19.884		25/64		0.390625		9.922		57/64		0.890625		22.622
11/16		0.6875		17.463		27/32		0.84375		21.431		27/64		0.421785		10.716		59/64		0.921875		23.416
13/16		0.8125		20.638		29/32		0.90625		23.019		29/64		0.453125		11.509		61/64		0.953125		24.209
15/16		0.9375		23.813		31/32		0.96875		24.606		31/64		0.484375		12.303		63/64		0.984375		25.003
1/32		0.03125		0.794		1/64		0.01562		0.397		33/64		0.515625		13.097		64/64		1		25.4

Chemical Composition of common Stainless Steel Grades
%
Component	C	Si	Mn	P	S	Cr	Ni	Mo
304	MAX 0.08	MAX 1.00	MAX 2.00	MAX 0.045	MAX 0.03	17.00-19.00	8.00-10.00
304L	MAX 0.03	MAX 1.00	MAX 2.00	MAX 0.045	MAX 0.03	18.00-20.00	8.00-10.00
316	MAX 0.08	MAX 1.00	MAX 2.00	MAX 0.045	MAX 0.03	16.00-18.00	10.00-14.00	2.00-3.00
316L	MAX 0.03	MAX 1.00	MAX 2.00	MAX 0.045	MAX 0.03	16.00-18.00	12.00-15.00	2.00-3.00

Regards
Andy
Xinghua City TianLi Stainless Steel Products Co., Ltd
Factory Address : Xingda Road,Dongbei Industrial Zone,Dainan Town,Xinghua City,Jiangsu Province,China.225700
Sales Office : Room 809B Building,Qixing Plaza,Meilong Road,Mingzhi Town,Longhua New District,Shenzhen City,Guangdong Province,China 518131

---
