Steel Coil/Color Coated Coil/Color/PPGI/Galvanized Coil/Galvanized Product/Alloy/Non Alloy/Steel Wire/Factory/Roof Sheets/Carbon Steel Coil/Gi/Roofing Sheet

Product Description

Product Parameters

The production process	EN10147/EN10142/DIN 17162/JIS G3302/ASTM A653
Steel Grade	DC51D+Z,DC52D+Z,DC53D+Z,S280GD+Z,S350GD+Z,S550GD+Z,DC51D+AZ,DC52D+AZ,S250GD+AZ,S300GD+AZ,S350GD+AZ,S550GD+AZSECCSECE.BLCE+Z,BLDE+Z BUSDE+Z or Customer's Requirement
Base Steel	Hot dip galvanized steel, Hot dip galvalume steel, Electro galvanized steel
Thickness	0.12-6.0mm
Width	600-1500mm
Surface Color	RAL,wood grain pattern, camouflage pattern , stone pattern, matte pattern , high glosspattern . flower pattern, etc
Quality	Approved by SGSISO
Coil Weight	3-20metric ton per coil
Package	Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing, side guard plate,then wrapped by seven steel belt.or according to customer's requirement
Export market	Europe,Africa,Central Asia,Southeast Asia,Middle East,South America,North America, etc

bse metal type	Grade	CHEMICAL COMPOSITION %
		C	Si	Mn	P	S
cold rolled steel sheet	DC51D+Z (St01Z, St02Z, St03Z) , DC51D+ZF	≤0.10	-	≤0.50	≤0.035	0.03
	DC52D+Z (St04Z), DC52D+ZF	≤0.08	-	≤0.45	≤0.030	0.03
	DC53D+Z (St05Z), DC53D+ZF	≤0.08	-	≤0.40	≤0.030	0.03
	DC54D+Z (St06Z), DC54D+ZF	≤0.01	≤0.10	≤0.30	≤0.025	0.03
	DC56D+Z (St07Z), DC56D+ZF	≤0.01	≤0.10	≤0.30	≤0.025	0.03
hot rolled steel sheet	DD51D+Z (St01ZR, St02ZR)	≤0.10	-	≤0.50	≤0.035	0.03
	DD54D+Z (St06ZR)	≤0.01	≤0.10	≤0.30	≤0.025	0.03

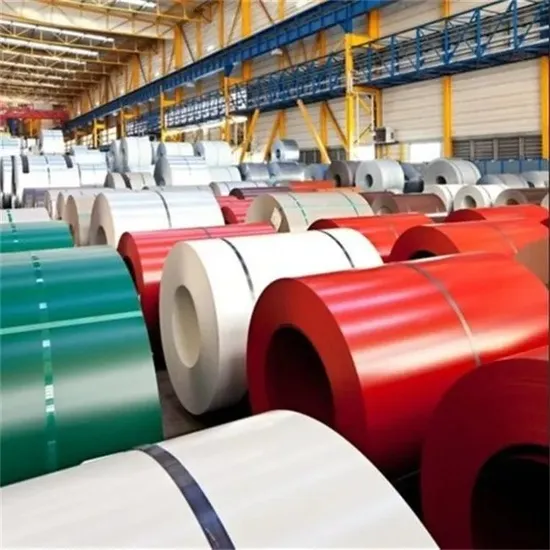

Prouduct Display
Galvanized steel is to prevent the steel plate surface from corrosion to extend its service life, in the steel plate surface coated with a layer of metal zinc, the zinc coated steel plate are called galvanized sheet. According to the production and
processing methods can be divided into the.1) hot dip galvanized steel. Thin plate in melting zinc bath, make its surface adhesion of a layer of zinc sheet. At present mainly adopts continuous galvanizing process, namely the continuous roll of steel plate in the melt zinc plating tank made of galvanized steel sheet; (2) the alloying of galvanized steel.This kind of steel plate is made by hot dip method, but after the slot, immediately heated to a temperature of about 500 ºC, it make the generation of zinc and iron alloy membrane. This kind of galvanized sheet with good coating of sex and weldability Galvanized Steel 0.18mm-20mm thick galvanized steel sheet 2mm thick Hot dip galvanized steel sizes galvanized sheet metal roll.
Substrate Type1.Hot-dip galvanized color coated steel sheet(prepainted galvanized steel sheet)The product obtained by coating an organic coating on a hot-dip galvanized steel sheet is a hot-dip galvanized color-coated plate. In addition to the protective effect of zinc, the hot-dip galvanized color-coated sheet also protects against rust and has a longer service life than hot-dip galvanized sheet; 2.Hot-dip aluminum-zinc color coated sheet(prepainted galvalume steel sheet)Hot-dip aluminum-zinc steel sheets can also be used as color-coated substrates (55% AI-Zn and 5% AI-Zn); 3.Electroplated zinc color coated sheet The electro-galvanized sheet is used as the substrate, and the product obtained by baking with the organic coating is an electrogalvanized color-coated plate. It has a beautiful appearance and excellent processing properties, and therefore can be mainly used for home appliances, audio, steel furniture, interior decoration, and the like.
Types of colour-coating: standard polyester, matt polyester, decoprint.
Coating TypePolyester (PE): Good adhesion, rich colors, wide range in formability and outdoor durability, medium chemical resistance, and low cost. Silicon modified polyester(SMP): Good abrasion resistance and heat resistance, as well as good external durability andchalking resistance, gloss retention, general flexibility, and medium cost. High Durability Polyester(HDP): Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and anti-pulverization, good paint film adhesion, rich color, excellent cost performance. Polyvinylidene Fluoride(PVDF): Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good moldability, stain resistance, limited color, and highcost.
Company Profile
Hongye Steel (Shandong) Co., Ltd. is a comprehensive, modern and high-quality enterprise integrating steel production, processing and sales. The company has developed rapidly since its establishment. It has established long-term and stable cooperative relations with Shandong Iron and Steel, Rizhao Iron and Steel, etc. Main products: carbon steel, I-beam, H-beam, stainless steel plate, wear-resistant plate, patterned steel plate, galvanized series, steel pipe, rebar, welded pipe, galvanized welded pipe, spiral welded pipe, etc. Widely used in important fields such as automobile, petroleum, railway, bridge, construction, electric power, transportation, machinery, shipbuilding, light industry, household appliances, kitchen and so on.
Hongye Steel (Shandong) Co., Ltd. has become the most potential steel supply company in Shandong Province in a short period of time. The company is supported by a strong capital chain and has been widely recognized by foreign customers. The products not only sell well in the domestic market, but also in the United States, Europe, Pakistan, South Korea, Japan, South Africa, Vietnam, Myanmar, Ethiopia, Australia, Bahrain, Singapore, Brazil, Russia and other countries and regions, and are well received by foreign customers. The number of exporting countries continues to grow, and sales are gradually increasing. Certifications
Application
Packaging & Shipping
Customer Feedback
FAQ
Q1: Are you a factory?
A1: We are a factory as well as a professional manufacturer established for more than 20 years and export over 10 years.
Q2: Can I get some samples?
A2: Can provide small samples for free. Customized sample takes 5-7 days.
Q3: How about the delivery time?
A3: Small trial order takes 5-7 days. Container order need 15-20 days.
Q4: Do you have any protection when packing?
A4: Cover with PE film , wrap with waterproof paper, pack with wooden plate,belt by steel strip, fasten on pallet.
Q5: How about your quality and how do you guarantee the quality?
A5: All products we supply is primary as you need, Our company is certificated to CE, and every product will be tested for 4-5processes. We welcome customers or the third party inspection agencies to come to our factory for inspection.
Q6: What is your terms of payment?
A6: Usually 30% deposit by TT in advance and balance against copy pf BL.

---
