Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.02/0.012
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, ISO 9001
Name
CNC Vertical Milling Machining Center
Tool Changer Capacity
24PCS
Spindle Noste to Table
120-820mm
Size of Worktable
1600X800mm
Cutting Feed Speed
10000mm/Min
Transport Package
Full-Closed Wooden Cases
Specification
CE, SIO9001, SGS
Production Capacity
100sets/Month
Product Description

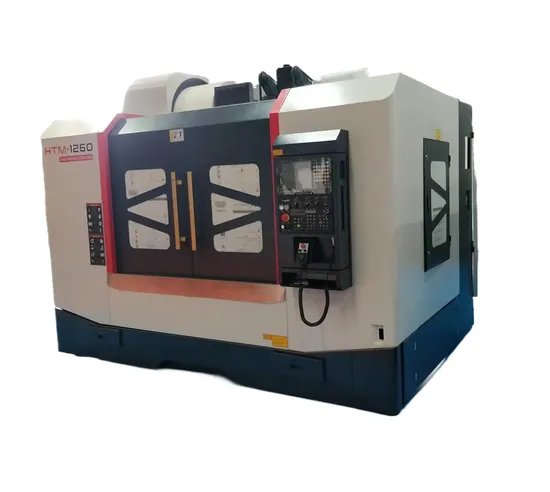

5 axis FANUC CNC Milling Machine CNC Vertical machining center price
Product Parameters
| Model | VMC1260 | VMC1370 |
| TABLE SIZE | 1300x600mm | 1400x700mm |
| MAX. LOAD ON TABLE | 1000kg | 1200kg |
| X.Y.Z-AXIS TRAVEL | 1200x600x650mm | 1300x700x700mm |
| distance from spindle center to column | 675mm | 775mm |
| Spindle nose to worktable surface | 120-770mm | 120-820mm |
| X,Y,Z feeding rate | 1-1000mm/min | 1-10000mm/min |
| apid movement speed | 24/36m/min | 24/36m/min |
| Spindle speed | 50-8000r/min | 50-8000r/min |
| Spindle taper | BT40-150 | BT40-150 |
| Spindle motor | 15kw | 15kw |
| X /Y/Z axis servo motor | βiS22/3000/βiS30/2000 | βiS22/3000/βiS30/2000 |
| Re-positioning accuracy | ±0.003mm | ±0.003mm |
| Positioning accuracy | ±0.005mm | ±0.005mm |
| Round type tool changer | 24 | 24 |
| Overal dimension (L×W×H) | 3400x2420x2600mm | 3680x2700x3020mm |
| Net weight | 9000kg | 10800kg |
| Standard configuration |
| Cnc controller | 1set | Fanuc |
| SPINDLE SERVO MOTOR | 1set | Fanuc |
| SPINDLE DRIVER | 1set | Fanuc |
| X,Y,Z-AXIS SERVO MOTOR | 1set | Fanuc |
| X,Y,Z-LEADSCREW BEARING P4 | 1group | NSK |
| X,Y,Z-LEADSCREW | 1group | Leadteam -taiwan |
| X-AXIS LINEAR ROLLER GUIDEWAY 55mm SLIDE SEA WIDER AND BIGGER | 1group for each | Hi-win -taiwan |
|
| Y-4PCS HEAVY-LOADING LINEAR GUIDEWAY ,2 PCS ROLLER, 2 PCS BALL 45mm SLIDE SEA WIDER AND BIGGER 55mm SLIDE SEA WIDER AND BIGGER | 1group for each | Hi-win -taiwan |
|
|
|
| SPINDLE UNIT BT50-150mm | 1 set | Kenturn -taiwan |
| TIME BELT AND TIME TOOTH BELT | 1set | Kenturn-taiwan |
| AIR CYLINDER 6T | 1set | Taiwan |
| LOKCING NUT | 1set | Leadteam-taiwan |
| MAIN AIR COMPONENT | 1group | Airtac -Taiwan |
| MAIN ELECTRIC COMPONET | 1group | S-chneider |
| WATER PUMP | 1set | China |
| X,Y-AXIS GUIDEWAY PROTECTION COVER | 1set | china |
| Z-AXIS COVER ) | 1set | China |
| AUTO-LUBRICATION | 1set | HERGA -JAPAN |
| OIL GAUGE | 1set | HERG -JAPAN |
| CABINET HEAT EXCHANGER | 1set | SHANGHAI |
| TRANSFORMER | 1set | CHINA |
| ELECTRIC HANDHWEEL | 1pc | CHINA |
| ROUND TYPE TOOL CHANGER 24T | 1pc | SANJET -Taiwan |
| SPRING CHIP CONVENYOR WITH CART | 1set | CHINA |
Optional configuration & accessories must be included into quotation:
1. The 4th axis wiring;
2. Direct driven spindle (Speed: 10000rpm,);
3. Spindle oil cooler;
4. Air conditioner (A/C) for electrical cabinet;
5. Auto. Tool length measurement system;
6. Screw type chip conveyor;
7. High pressure water flush system;
8. Safety door;
9. Oil skimmer.
