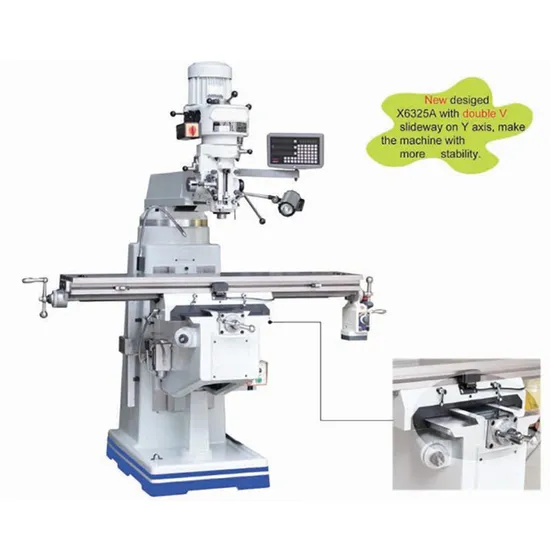

| Item | UNIT | X6325A with double-V slideway) |
| Table size | mm | 254×1270(10×50") | 254×1370(10×54") |
| T slot size | mm | 3×16 |
| X axis travel | mm | 800 | 900 |
| Y axis travel | mm | 440 |
| Zaxis travel | mm | 400 |
| Ram cross travel | mm | 470 |
| Distance from spindle nose to table | mm | 0~400 |
| Spindle hole taper | | Standar R8 (optional NT30/40) |
| Quill travel | mm | 127 |
| Spindle speed | r/min | Standard 16 shift: 65-4500(50HZ)80-5440(60HZ)
Optional Variable speed: 60-4200 |
| Auto quill feed | mm/rev | 0.04(0.0015")/0.08(0.003")/0.15(0.006") |
| Spindle motor power | HP | 3(2.2KW) |
| Milling head swivel | | ±90° |
| Milling head tilting | | ±45° |
| Dimension of package | 1 miller/pallet | mm | 1520×1550×2080 |
| 2 miller/pallet | mm | 1650×1800×2170 |
| 3 miller/pallet | mm | 1650×2185×2170 |
| G.W/set | kg | 1300 |
