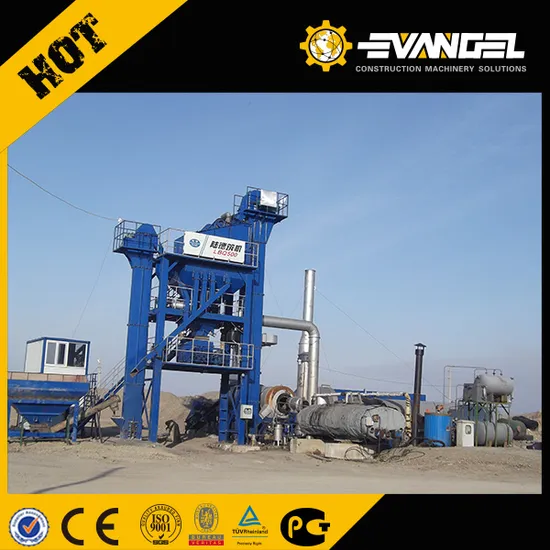

Hot Sale Roady Rd120X Asphalt Mixing Plant 120t/H

Product Description

Specification of Hot Sale Roady Rd120X Asphalt Mixing Plant 120t/h
1. The mixer use European technology; big obliquity, strong screw flow, solid three- dimensional compulsory mixing, which will form well boiling layer and consequently achieve well-proportioned mixing during a short time.
2. Asphalt weighing and spraying device use high-speed flux asphalt pump to realize high-pressure shower spraying asphalt, making hot aggregate, filler and asphalt mixed more quickly, equably; shorten the mixing time and enhance the ourput.
3. Vibrating screen use whole airproof vibrating screen whose eccentricity shaft is placed above and its swing range can be regulated. This can realize convenient maintenance.
4. The hot aggregate elevator is with our patent structure( patent No.: 200520128222.8). This part is for double-row double-ear chains, guide sliding wearable material hopper elevating, composite discharging the material with reliable performance.
5.Cold aggregate supply system use Modularize design, convenient transportation and installation and can adjust cold aggregate feeding position; use frequency conversion timing motor for feeding, react sensitively; adjust feeding exactly;
6. Filtering system use two-stage whole dust filtering project, efficiently control dust to grade;
use imported filtering bag, waterproof, oil-proof, well heat-resistant, which efficiently protract the using life.
7.Electric control system use International famous brand and global high quality electric control parts to isnure the capacity of the equipment;With fault-detecting and diagnosis alarming ability, convenient for saving the directions for material supplying proportion and printing report forms;
8.Drying drum:The material-raising blades design is reasonable and the burning area structure is with patent technology (patent No.: 200520031574), which makes cold aggregate mix more equably, and with high heat efficiency;


Paraments of Hot Sale Roady Rd120X Asphalt Mixing Plant 120t/h

No.	Parts Name		Parts total power (KW)	Remark
1	Cold aggregate supply system		12
2	The tilted belt feeding conveyer		5.5
3	Drying drum		44
4	Oil burning system		26
5	Hotaggregate elevator		11
6	Bag dust catcher system		116.62
7	Mixer tower assembly	vibrating screen	11
		Mixer	60
		Asphalt spraying system	15
8	Filler supply system		8
9	Pneumatic system		11
10	Asphalt supply system		32.95
The plant total installed power			356.57kW

Kindly contact me:
Nicole Chen/ Sales Manager
Evangel Industrial (Shanghai) Co., Ltd.
Evangel International Machinery Ltd.
(CHINESE LEADING CONSTRCUTION MACHINERY AND SPARE PARTS EXPORTER)
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Mobile: +86-13661626401
Tel: +86-21-62770109 Fax: +86-21-62770039
Web:http://evangelchina.en.made-in-china.com

---
