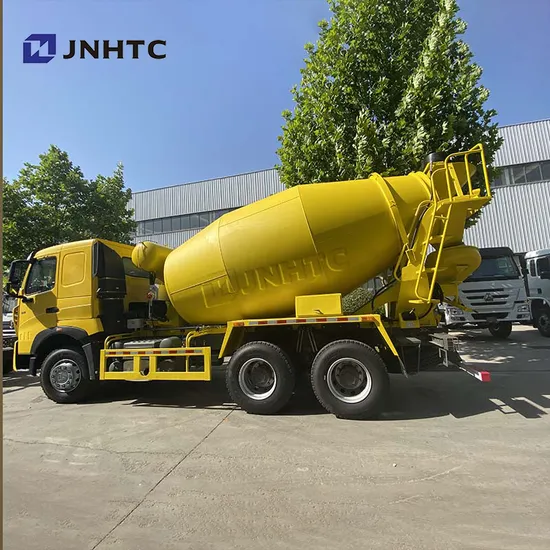

| Howo 6*4 concrete mixer truck | |||||||||
| Cabin | HW70(NO BED);HW76(SINGLE BED;air -conditioning as standard | ||||||||
| engine | Model | Wd615.62 | Wd615.87 | Wd615.69 | Wd615.47 | ||||
| Fuel | Diesel | ||||||||
| Displacement | 9.726L | ||||||||
| Emission Standard | EURII | ||||||||
| Power | 196(266)/2200 | 213(290)/2200 | 247(336)/2200 | 273(371)/2200 | |||||
| torque | 1100/1100-1600 | 1160/1160-1600 | 1350/1100-1600 | 1500/1100-1600 | |||||
| transmission | model | HW19710 10 forward and 2 reverse | |||||||
| Control model | MT | ||||||||
| Front axle | HF9 drum-type rated load of 9tons | ||||||||
| Rear axle | HC16 16tons speed ratio:3.93 4.42 4.8 5.73 | ||||||||
| Clutch | Single-plate dry diaphragm spring clutch, diameter 430(B)mm, hydraulically operating with air assistance | ||||||||
| steering | ZF8118 left | ||||||||
| Suspension | Leaf spring suspension | ||||||||
| Fuel tank | 400L | ||||||||
| tyres | 12.00R20tube | ||||||||
| Wheel base | 3800mm+1350mm | ||||||||
| Mixing tank | Nominal mixing volume | 10 | |||||||
| Speed of mixing barrel | 0-16 | ||||||||
| Capacity of water tank | 400L | ||||||||
| Residual rate of diacharge | <0.5 | ||||||||
